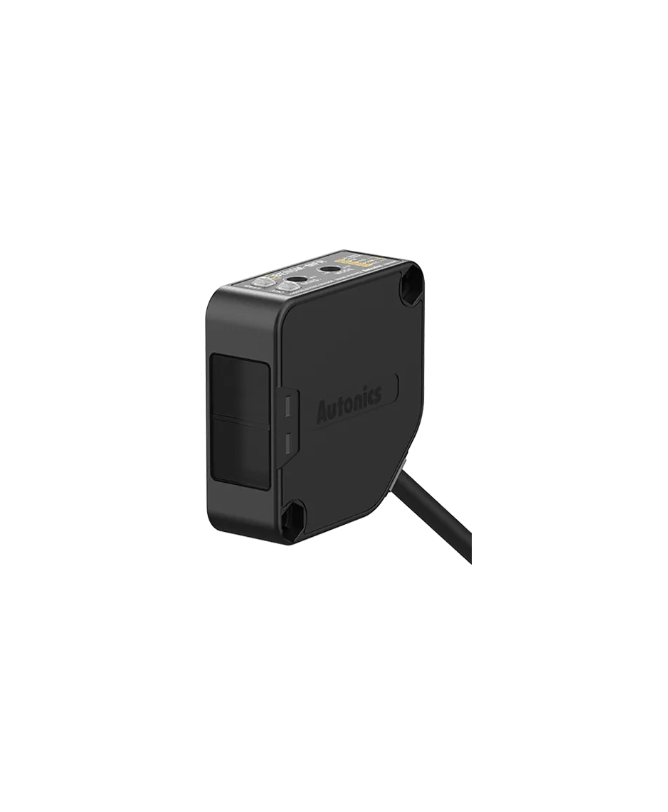

Autonics BEN5M-MFR Photoelectric Sensors (5m(MS-2), Ø60mm, 24-240VAC)

Sensing type: Retroreflective type(standard type)

Sensing distance: 5m(MS-2)

Sensing target: Opaque material of min. Ø60mm

Light source: Infrared LED(940nm)

Response time: Max. 20ms

Power supply: 24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%)

Current consumption: Max. 4VA

Sensitivity adjustment: Sensitivity adjuster

Operation mode: Light ON/Dark ON(set by switch)

Control output: Relay

Connection type: Cable type(Ø5, 2m)

Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)

Environment_Ambient temperature: -20 to 65℃, storage: -25 to 70℃

Protection structure: IP50

Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
