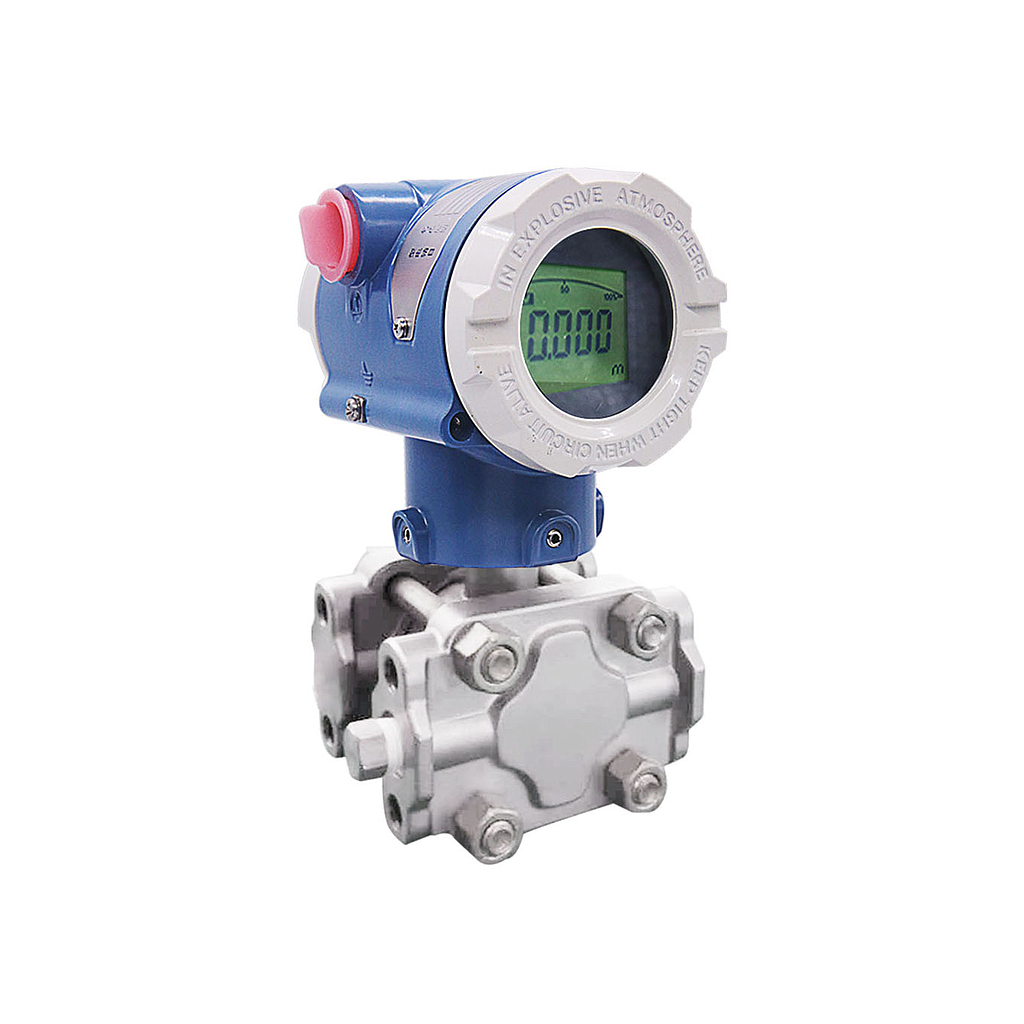

Auto Instrument AT3051GP Smart Gauge Pressure Transmitter (200Pa-10MPa)

Features

- Process Fluid: Liquid, gas, or steam flow as well as liquid level, density and pressure

- Measuring range: 200Pa-10MPa

- Working Temperature: -25 to +95C

- Current Output: 4 – 20 mA 2 wires Hart Protocol

- Power Supply: 24VDC

- Ambient Temperature: -25 to +120C

- Process connections: 1/4 – 18 NPT or 1/2 – 14 NPT

- Electrical Connections: 1/2”NPT or M20*1.5

- Enclosure:IP65

- Intrinsically Safe: ia II C T6

- Explosion proof: d II B T5

- Diaphragm material: SUS316L, Hastelloy C

Industry application

- Process control system

- Petroleum industry

- Chemical industry

- Power plant

Datasheet
