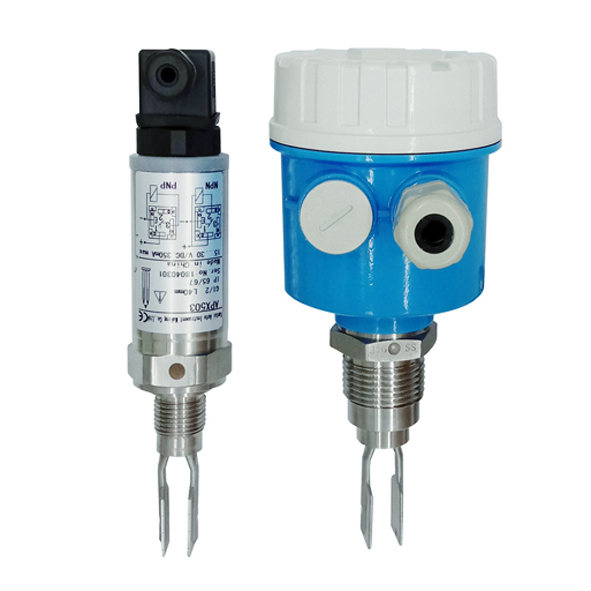

Auto Instrument APX503 Liquid Level Control Vibration Tuning Fork Level Switch

Medium temperature range: -30 ° C to 150 ° C

Ambient temperature: -20 ° C to 80 ° C

Ambient humidity: ≤ 95% RH

Measured medium: liquid, powder or granular solid

Measured medium density: solid ≥ 0.1g/cm3, liquid ≥ 0.7g/cm3

Measured solid particle size: ≤ 10mm

Maximum liquid viscosity: <1000mm2 / s

Measured medium repose angle: ≥ 200

Pressure range: ≤ 1MPa ※ shell material: die-casting aluminum alloy

Fork material: 1Cr18Ni9Ti

Shell protection: IP65 ※ connection: 1 “NPT thread / flange (two ways)

Electrical parameters:

1: Supply voltage: 24 V DC; 220V AC 50Hz

2: Output signal: relay output double-pole double-throw (DPDT) contact capacity: 8A 220V AC 4A 24V DC

3: Power consumption: ≤ 2W

Read the documentation carefully before ordering
