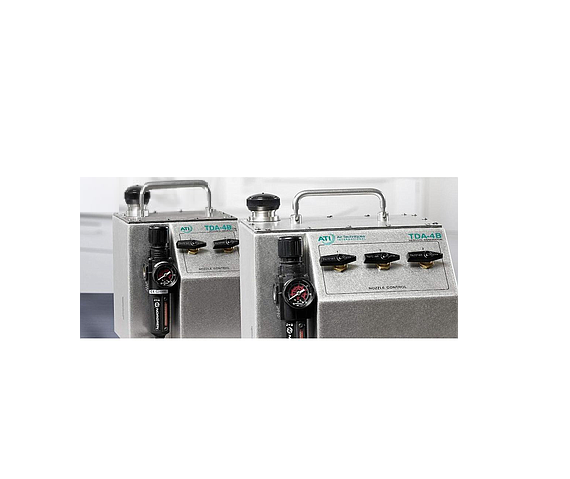

ATI TDA-4B Laskin-Nozzle Aerosol Generators

Service & Training @ ATI
- OEM calibration, maintenance & repair
- ATI Certified Operational, Service & Maintenance Training (ask for details)
- Quality testing for HEPA filters & protective masks available at
our ISO-9001 registered, NQA-1 & DOE audited Test Laboratory
Size: 11” (L) x 11” (W) x 10” (H)
Weight: 16lbs (7.3kg)
Aerosol Output: 50 – 8,100 cfm
Concentration: 100 µg/l @*: 810 cfm 10 µg/l @*: 8,100 cfm
Generator Type: 1 to 6 Laskin Nozzle
Compressed Air: min 3.0 cfm/nozzle @ 23 psig
Aerosol Type: Polydisperse (Cold) CE, FCC, EN61010-1:2010, EN61326-1:2006

Manual
