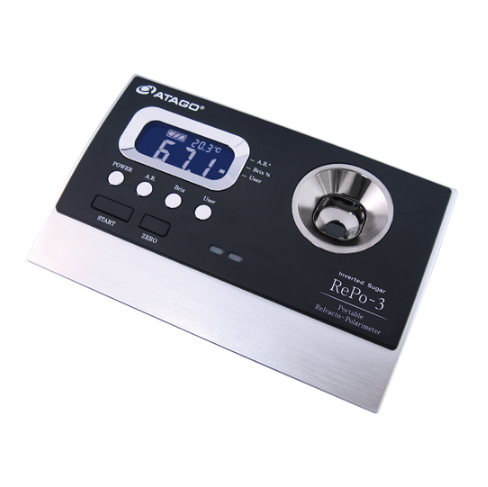

ATAGO RePo-3 Portable Refracto-Polarimete (-5.00 ~+5.00°; 0.0 ~ 85.0%)

In addition to angle of rotation and Brix, the RePo-3 also converts and displays the amount of invert sugar (%) derived from sucrose. The RePo-3 is ideal for various industries such as sugar refining.

Range

Angle of Rotation:-5.00 to +5.00° (Convertible to -25.00°to +25.00°with a 100mm observation tube, Convertible to -50.00° to +50.00°with a 200mm observation tube)

Brix: 0.0 to 85.0%

Invert ratio% of sucrose:0.0 to 99.9%

Temperature: 15 to 40℃

Resolution

Angle of Rotation : 0.01°

Brix: 0.1%

Invert ratio: 0.1%

Temperature: 0.1℃

Accuracy

Angle of Rotation: +-0.1°(20℃）

Brix :+-0.2%

Temperature: +-1℃

Measurement Readings: Angle of Rotation,Brix,Invert ratio % at Inverted sugar,Temperature

Temperature compensation: Brix:15 to 40℃

Light source: LED

Measurement Time: 12 seconds

Power Supply: Size AAA alkaline battery x4

International Protection Class: IP67
