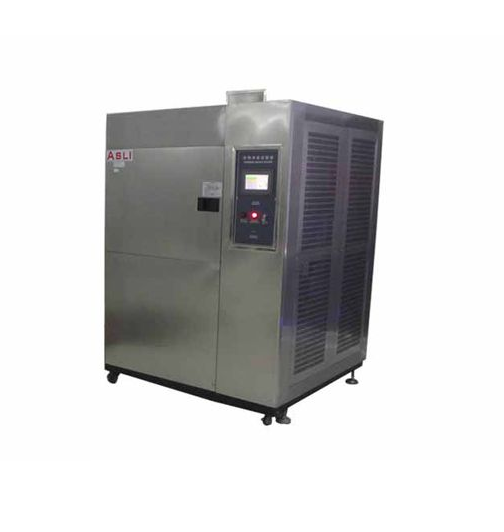

ASLI TS-150-B Thermal shock chamber (600x500x500mm)

- Internal Dimension WxHxD (mm): 600x500x500
- External Dimension WxHxD (mm): 1600x2000x1700
- Temperature Range of Testing zone:
+ Type B:-55℃ ~+150℃ ( 200℃ is Optional )
+ High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);
+ Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC
- Exposure Time of High/Low Temperature
+ Exposure Time of High Temperature: +60℃ ~ +150℃ (200℃ is Optional) 30Mins
+ Exposure Time of Low Temperature : -10℃~Type A:-40℃ / Type B -55℃ / Type C -65℃ 30Mins
- Temperature of Heat-Storing Slot / Heating Time: RT~200℃/About 45mins
- Temperature of Cool-storing Slot / Cooling Time: RT~-75℃/ About 100mins
- Temperature Recovery Time / Conversion Time: ≤5min/≤5sec
- Control Accuracy / Distribution Uniformity: ±0.5℃/±2℃
- Cooling System: Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)
- Compressor: French 'Tecumseh' Brand, Germany Bizer Brand
- Power: AC380V 3 phase 5 lines ,50/60HZ
- Weight (Approx): 750 Kg
- Accessories: viewing window(special order)
