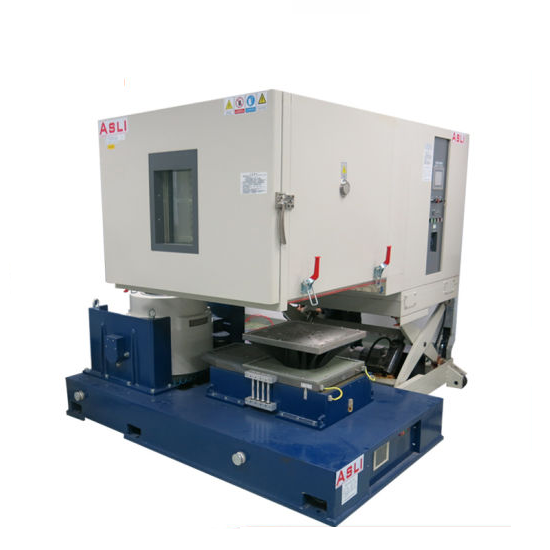

ASLI THV-1500（A~F) Temperature Humidity Vibration Combined Test System (1500×1500×1500mm)

Internal Dimension

1500×1500×1500

External Dimension

1800×2400×3000

Temperature Range

Low temperature: （A:25℃; B:0℃; C:-20℃ ; D: -40℃; E: -60℃; F: -70℃）

High temperature:100℃（150℃）

Humidity Range

20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)

Analytic Accuracy / Distribution uniformity of temperature and humidity

0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.

Control Accuracy of temperature and humidity

±0.5℃; ±2.5% R.H.

Temperature Rising / Falling
Speed Rate

Temperature rising approx. 0.1~3.0℃/min / temperature falling approx. 0.1~1.5℃/min;
(The Falling Speed Rate Min.1.5℃/min is a special optional condition)

Vibration Test Equipment

Choose proper vibration test bench according to customer's test condition , the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference

Power

AC380V 3∮ 5 Lines, 50/60HZ

Optional Accessories

Inner door with operation hole(Optional) , Recorder(optional), Water Purifier, Dehumidifier
