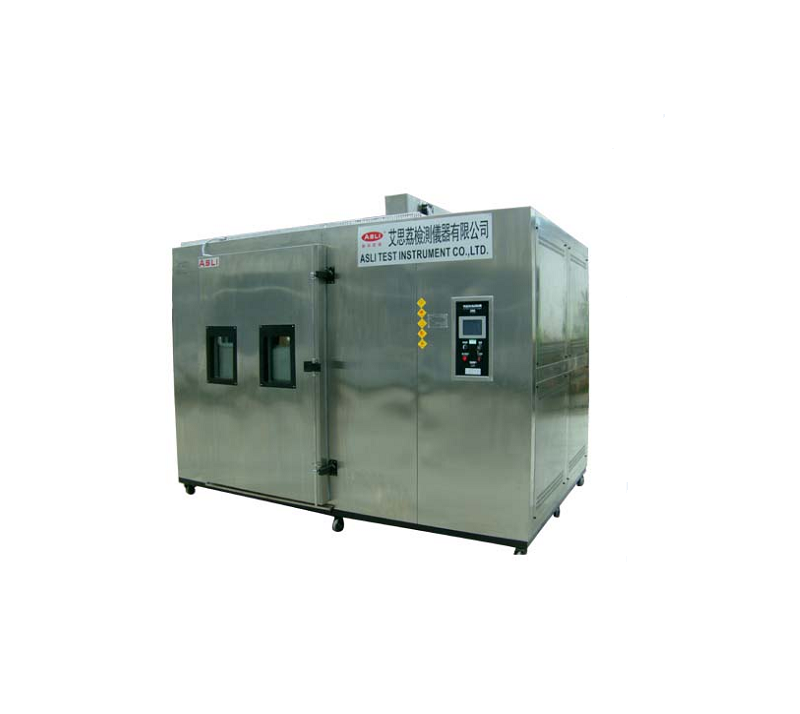

ASLI THR-12000-C walk-in humidity and temperature test chamber (12.000 lits -20℃, 80℃, 20%~98%RH)

- Inner Dimension: W3000*H2000*D2000(mm)
Or Customers designated space size and design
- Temperature Range
+ Low Temperature: C:-20℃
+ High Temperature: 80℃ (80℃ ~150℃ is optional)
- Humidity Range: 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
- Analytic Accuracy/Distribution Uniformity of Temperature& Humidity: 0.1℃; 0.1% R.H/±2.5℃; ±3.5% R.H.
- Control Accuracy of Temperature and Humidity: ±0.5℃; ±2.5% R.H.
- Temperature Rising/Falling speed Rate:
+ Temperature rising approx. 0.1~3.0℃/min
+ Temperature falling approx. 0.1~1.0℃/min;( The Falling Speed Rate Min.1.0℃/min is a special optional condition)
- Cooling System: Water cooling
- Compressor: French Tecumseh Brand, Germany Bitzer Brand
- Power: AC 380 V,50/60HZ ,3ph 5 Lines
- Optional Accessories: Slope for cart , Recorder, Water Purifier, Dehumidifier
