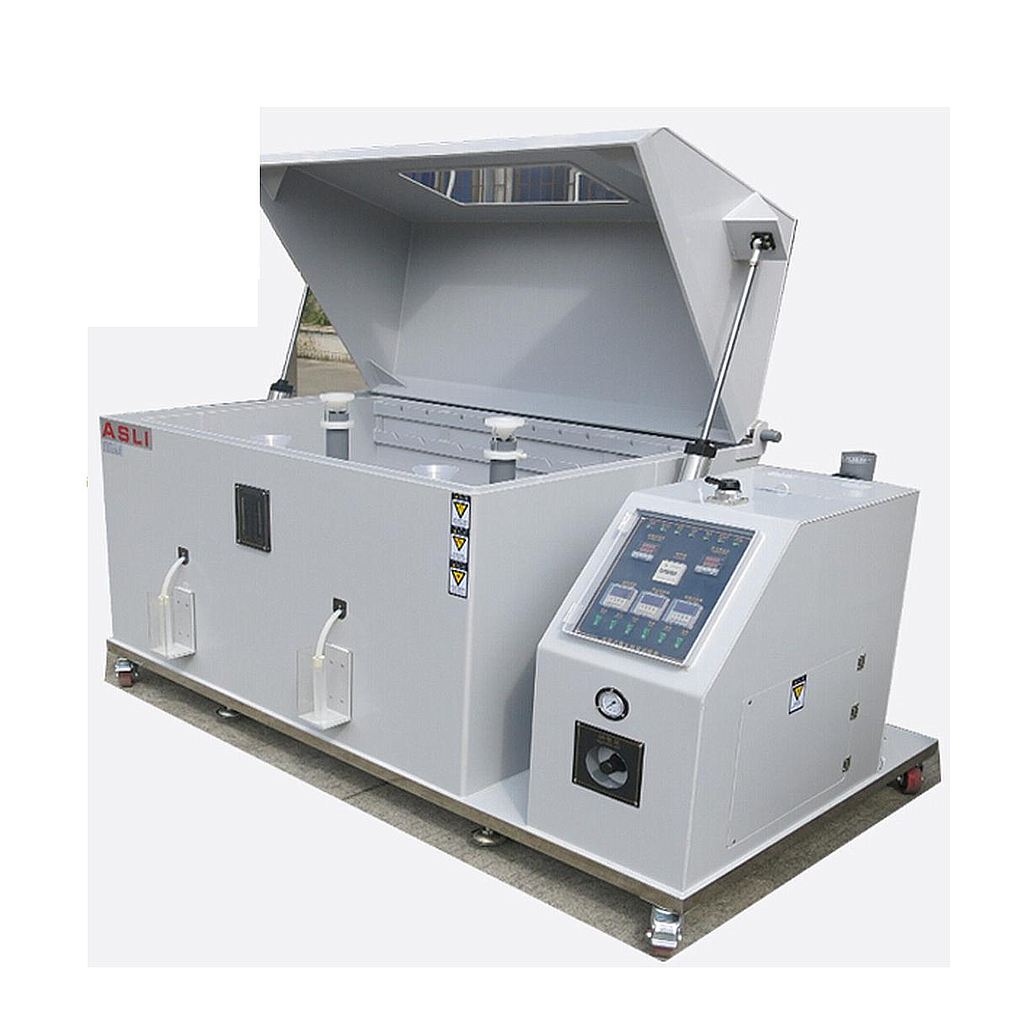

ASLI SDH-120 Sulfur Dioxide Spray Chamber

- Internal Dimension WxHxD (mm): 1200x800x500
- External Dimension WxHxD (mm): 1900x1300x1400
- Lab Temperature: Saline test (NSS ACSS) 35±1 ℃ ;Corrosion Test (CASS)50±1 ℃
- Pressure Bucket Temperature: Saline test method (NSS ACSS) 47±1 ℃ / Corrosion Test (CASS)63±1 ℃
- Lab Capacity (L): 500
- Saline Capacity (L): 40
- Salt concentration: 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
- Compressed Air Pressure (KGf): 1.0~6.0
- Spray Volume: 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)
- Spray Form: Continuous Spraying or Programmable Spraying
- Gas Density: 0.1~1% adjustable
- Gas Generated: Titration/cylinder Method
- Power: AC220V 1 phase 3 lines 15A

Datasheet
