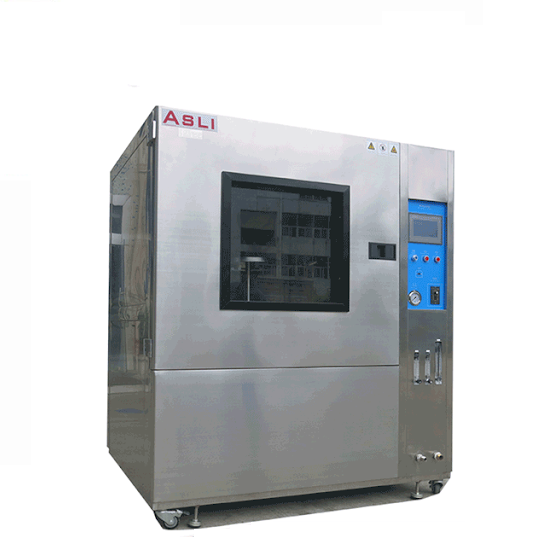

ASLI RT-1000A Rain Spray Test Chamber

Test Standard

JIS, ISO, IEC60529, DIN40050, GB2423, GB4208 standard

Internal Dimension
WxHxD (mm)

1000x1000x1000

External Dimension
WxHxD (mm)

1600x1900x1400

JIS Test

Flow:1.8L/Min~3.9L/Min

Pressure:0.1kgf/cm2~0.3 kgf/cm2

Drop Test

1~1.5mm/Min Adjustable
IPx1 IPx2 drop speed: 1~1.5mm/Min, adjustable

Rain of Pipe-Swing Test

IPx3 IPx4 swing pipe: RT~±80℃
Flow:0.07L/min per Nozzle

Water Spray Test

IPx3 IPx4 jet:2.5m~3m
flow :12.5L/min ~100L/Min

High Pressure Jet Test

80Kgf~100Kgf
IPx9K pressure of jet:80Kgf~100Kgf
Flow:14~16L/Min

Rotating Speed of Rotating-Plate

4~20 RPM adjustable
