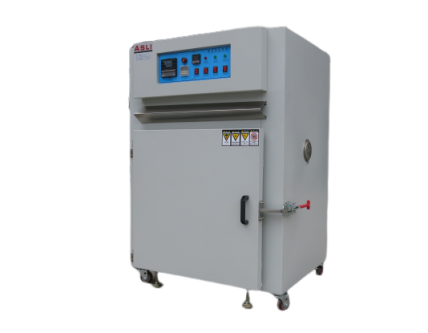

ASLI RND-60 Nitrogen High Temperature Oven (+15℃ ~ 200℃)

Dimensions

Internal Dimension (W×H×D)：500×600×600 (mm)

External Dimension(W×H×D)：700×1200×650 (mm)

Temp. Control Accuracy: ±0.5℃

Temp.Distribution Uniformity: ±2℃

Temp.Analytic Accuracy: 0.1℃

Material of Construction:

Interior material is high temperature resistant ceramic plate

Exterior material is paint coated steel plate

Insulation Material of imported fire-proof rock wool

Heating Medium: electric heating tube

Temperature：RT + 15 ~ 200℃ （Temp.&Time Setting freely, automatic timing when reach the preset temp., and automatic stop temperature when time’s up).

Control System

P.I.D microcomputer automatic calculate temperature controller, PV/SV display at the same time, set by press key.;

220V Solid state relay temperature output;

Current Controller : SSR no contact relay

Air circulating System:

Forced horizontal air circulation system;

Temperature resistant special motor with long axis, and power 1/2 HP 50HZ

Built-in adjustable wind guide plate.

Power: AC220V， Three Phase Five Lines
