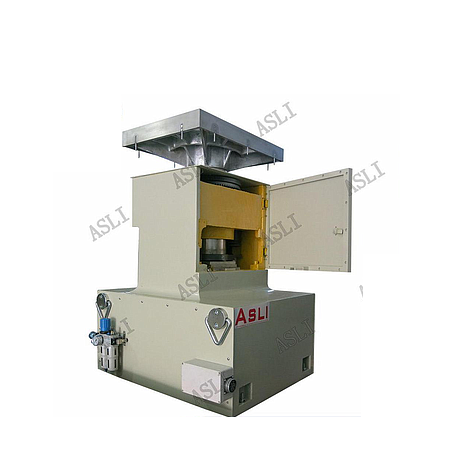

ASLI MS-100 Mechanical Shock Tester (100kg)

- Max. Loading (kg): 100
- Peek Value Acceleration ( m/s2): 50~1000
- Pulse Time (ms): 20~3
- Shock Frequency (times /min): 10~80
- Bench Size (mm): 700×700
- Max.Dropped Height (mm): 60
- Impact and Crush Wave: Half Sine wave, ( trapezoidal wave, and the sawtooth wave, square wave optional)
- External Dimension W×H×D (mm): 800×1300×1000
- Weight (Kg): 1250
- Protection Device: Door protection, over-load protection, zero signal protection
- Power: AC 220V, 1∮ 3 Lines , 50/60HZ; AC 380 V , 3∮ 5 Lines, 50/60HZ
- Environmental Conditions: Temperature: 25℃±5.0℃ humidity: <85%(25℃)
