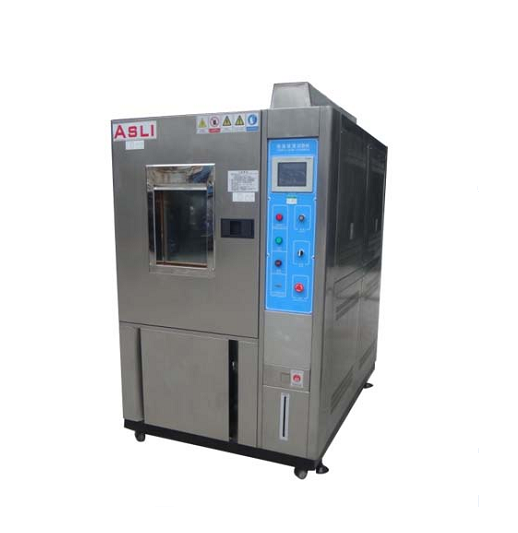

ASLI HL-225(A~F) High low Temperature Cycle Test Chamber (225lits, -70℃~150℃)

Internal Dimension

WxHxD (mm)

600x750x500

Internal Dimension WxHxD (mm)

1200x1900x1150

Temperature Range

Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)

High Temperature 150℃

Analytic Accuracy/Distribution Uniformity of Temperature

0.1℃ /±2.0℃

Control Accuracy of Temperature

±0.5℃

Temperature Rising/Falling Speed Rate

Temperature rising approx. 0.1~3.0℃/min / temperature falling approx. 0.1~1.5℃/min; ( The Falling Speed Rate Min.1.5℃ per minute is a special optional condition)

Inner and Outer Material

Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated.

Insulation Material

Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials

Cooling System

Wind cooling or water cooling/single segment compressor(-40℃, double segment compressor -70℃)

Protection Devices

Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection

Compressor

French Tecumseh Brand,Germany Bizer Brand

Power

AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ

Approx. Weight (Kg)

250

Optional Accessories

Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
