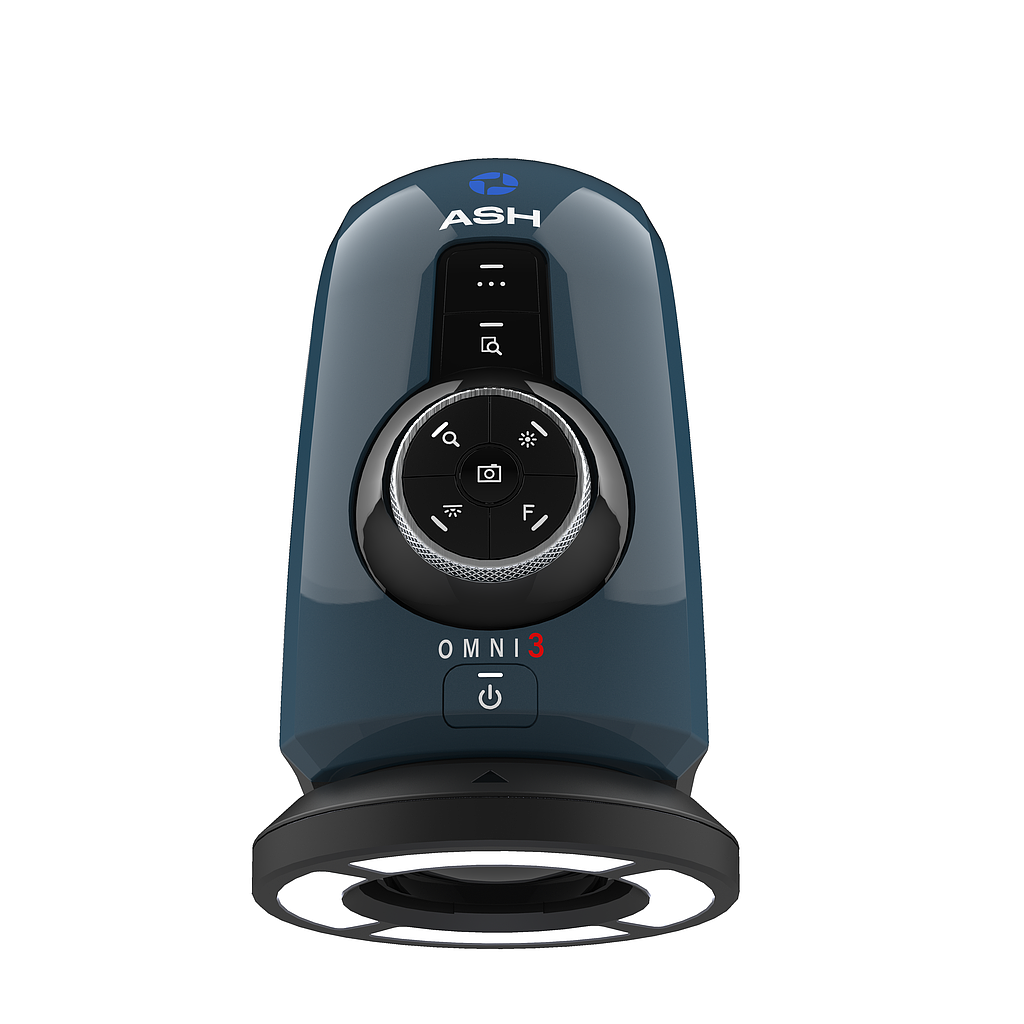

ASH Omni 3 Inspection & Measurement Digital Microscope System (2.5–68x; 1920 × 1080 pixel)

Magnification range (with supplied +5 lens): 2.5–68x (optical)

Digital magnification range: 69.0–136.5x

Camera resolution: 1920 × 1080 pixels

Monitor connections: HDMI / DVI

Monitor requirements: HD Ready / Full HD (recommended)

Input / Output:

– HDMI output

– USB 2.0 (4 ports)

– Mini USB port

– General purpose I/O (3 ports)

– DC power jack 24V

Internal storage: 16 GB

Image capture:

– Internal storage

– Removable USB image storage

– USB On-the-Go (PC connectivity)

Power consumption: 24 W

Dimensions (L × W × H): 216 × 125 × 136 mm

Weight: 1.5 kg

Operating temperature:

– Storage: 10°C to 60°C

– Operating: 5°C to 40°C

Including:

Omni 3

Quadrant Controllable Ring Light

Lens +5

Mouse & Mat

Keyboard

Power Supply

HDMI to HDMI Cable

Mini USB Cable (for PC connection)

USB Memory Stick (8gb)

Grounding Cable

2 x Arms Brackets (for stand mounting)

Arm Receiver

User Manual

Cleaning Cloth

Brochure
