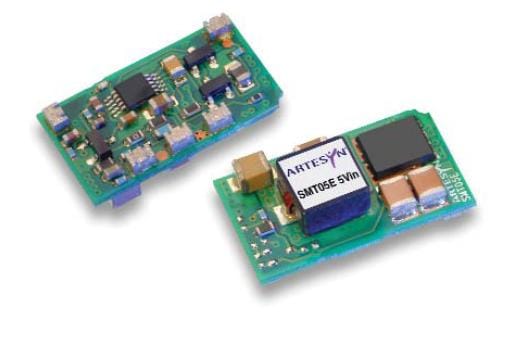

Artesyn SMT05E-12W3V3-TJ Non-Isolated / PoL 10-14Vin 3.63V 5A 0.80" x 0.45" x 0.24

Width: 11.43 mm (0.45 in)

Height: 6.7 mm (0.264 in)

Length: 20.32 mm (0.8 in)

Industry: Industrial

Efficiency: 91 %

Unit Weight: 2.800 g

Output Power: 16.5 W

Mounting Style: SMD/SMT

Mechanical Style: Non-Isolated / POL

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 14 V

Input Voltage - Min: 10 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 800 mV to 3.63 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
