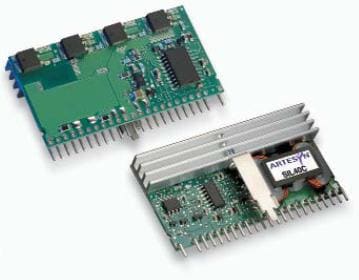

Artesyn SIL40C2-00SADJ-HJ Non-Isolated / PoL 4.5-13.8Vin 0.6-5.0V Sngl-in-ln HorizMon

Width: 28 mm (1.102 in)

Height: 12 mm (0.472 in)

Length: 30.5 mm (1.201 in)

Industry: Industrial

Efficiency: 94 %

Output Type: Single

Unit Weight: 17 g

Output Power: 200 W

Mounting Style: Through Hole

Mechanical Style: Non-Isolated / POL

Number of Outputs: 1 Output

Input Voltage - Max: 13.8 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 9 V

Output Current-Channel 1: 40 A

Output Voltage-Channel 1: 600 mV to 5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
