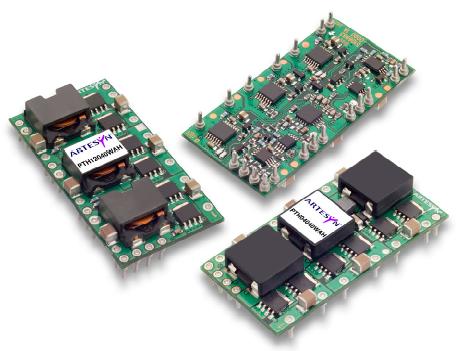

Artesyn PTH12040WAZ Non-Isolated / PoL 8.0-14Vin 5.5V 50A 2.045" x1.045"x0.357

Width: 26.54 mm (1.045 in)

Height: 9 mm (0.354 in)

Length: 52 mm (2.047 in)

Industry: Industrial

Efficiency: 96 %

Output Type: Wide

Unit Weight: 17 g

Output Power: 275 W

Cooling Method: Convection

Mounting Style: SMD/SMT

Mechanical Style: Non-Isolated / POL

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 14 V

Input Voltage - Min: 8 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 50 A

Output Voltage-Channel 1: 800 mV to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
