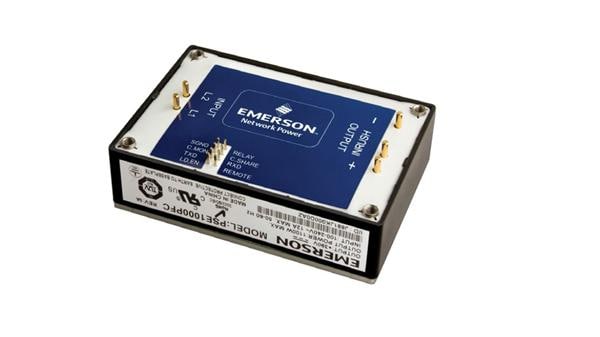

Artesyn PSE1000PFC Front End Power Supplies 1000W 390VDC@2.8A 3.5x2.4x1.0 TH 3.8mm

Width: 2.4 in

Height: 1 in

Length: 3.5 in

Industry: Industrial

Output Power: 1 kW

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Rack

Input Frequency: 63 Hz

Mechanical Style: PFC Front End

Isolation Voltage: 1.5 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Enclosed

Input Voltage, Nominal: 115 VAC, 230 VAC

Output Current-Channel 1: 2.82 A

Output Voltage-Channel 1: 390 V

Operating Temperature Range: - 40 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
