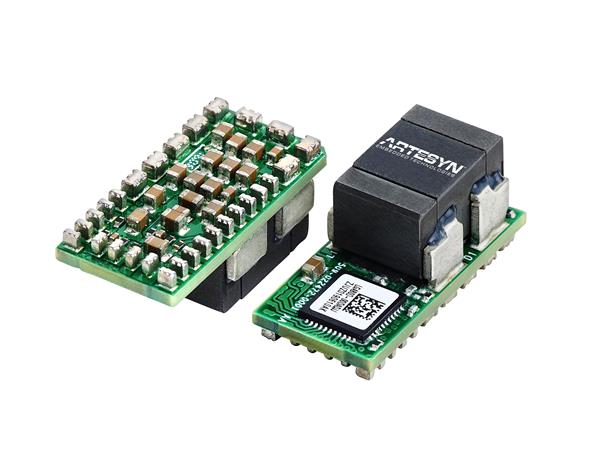

Artesyn LGA80D-00DADJJ Non-Isolated / PoL 80A 7.5-14Vin 0.6-5.2Vout

Width: 12.7 mm (0.5 in)

Height: 12.2 mm (0.48 in)

Length: 25.4 mm (1 in)

Industry: Industrial

Efficiency: 95.5 %

Output Type: Single/Dual

Unit Weight: 13.805 g

Output Power: 200 W

Mounting Style: SMD/SMT

Mechanical Style: Non-Isolated / POL

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Input Voltage - Max: 14 V

Input Voltage - Min: 7.5 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 40 A

Output Current-Channel 2: 40 A

Output Voltage-Channel 1: 600 mV to 5.2 V

Output Voltage-Channel 2: 600 mV to 5.2 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
