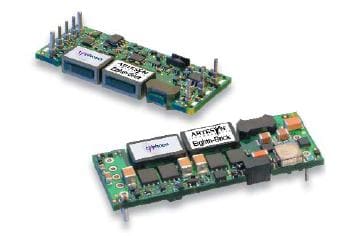

Artesyn LES50A48-1V2RENJ Isolated 60W 36-75Vin Single 1.2V 50A 1/8 Brick

Width: 22.86 mm (0.9 in)

Height: 8.64 mm (0.34 in)

Length: 58.4 mm (2.299 in)

Efficiency: 86 %

Output Power: 60 W

Input Voltage: 36 V to 75 V

Mounting Style: Through Hole

Mechanical Style: Isolated

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 75 V

Input Voltage - Min: 36 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 50 A

Output Voltage-Channel 1: 1.2 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
