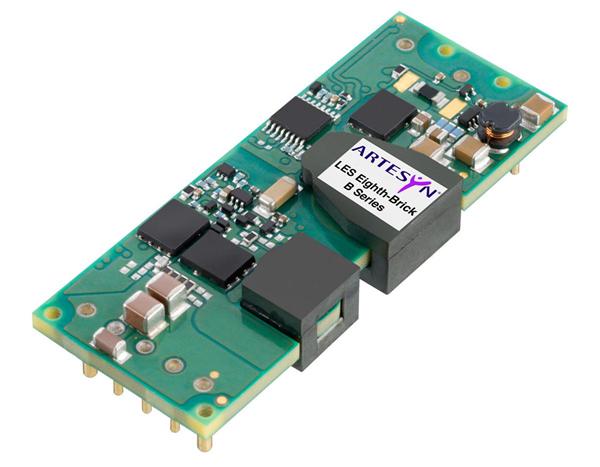

Artesyn LES20A24-3V3EJ Isolated 24VDC 3.3V 20A 0.34H 0.188 Pin L in

Width: 22.86 mm (0.9 in)

Height: 8.64 mm (0.34 in)

Length: 58.4 mm (2.299 in)

Efficiency: 90 %

Output Power: 66 W

Input Voltage: 18 V to 36 V

Mounting Style: Through Hole

Mechanical Style: Isolated

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
