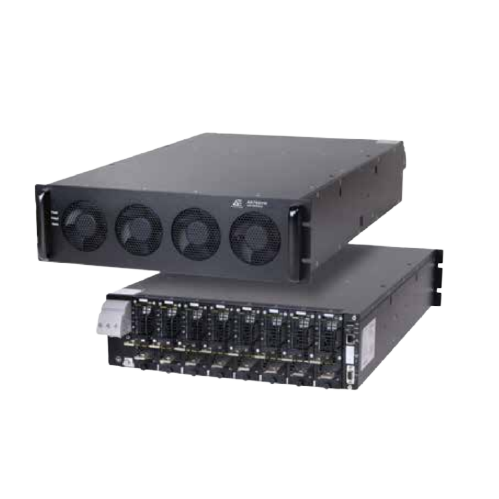

Artesyn iHP24C3A Modular High Power System (540VAC~660VAC, 3-phase)

Input Parameter: 19” Rack 24 KW strapped as 3-phase 600 Vac Nominal

Input range: 540 Vac to 660 Vac (Nominal rating 600 Vac)

Number of phases: 3-phase Wye 5 wire total (3-phases, neutral and protective earth ground)

Frequency: 47-63 Hz

Max current/phase: 29 A at 312 Vac

Current inrush: 2.5 x Max input current

Power factor: > 0.98 at full load and nominal line

Standby voltage: 5 V

Standby regulation: 4.75 - 5.25 V

Standby max current: 1 A

>> Please check out all the information in the datasheet for the suitable options

Datasheet
