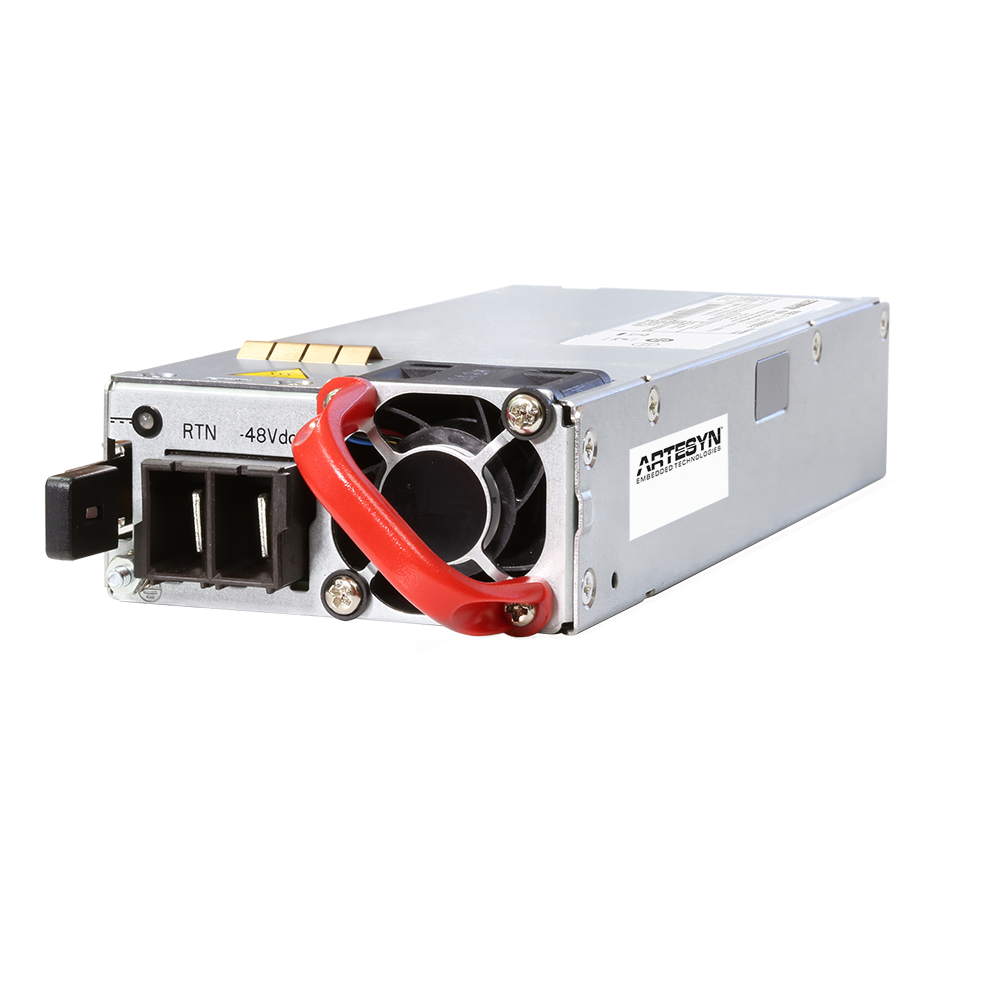

Artesyn DS500SDC-3-001 Front-end Power Supply (12V/41.67A; 12Vsb/3A; 500W)

Input

Input range: -36 to -72 Vdc

Efficiency: 90.0% peak

Max input current: 17.5 Arms

Output

Main DC Output:

Nominal setting: MIN: -0.20%/ NOM: 12/ MAX: 0.20%

Total output regulation range： MIN: 11.4 V/ MAX: 12.6 V

Output current: MIN: 2/ MAX: 41.67 A

Standby DC Output:

Nominal setting: MIN: -1%/ NOM: 12/ MAX: 1%

Total output regulation range: MIN: 11.4 V/ MAX: 12.6 V

Output current: MIN: 0.1/ MAX: 3.0 A

Operating temperature: DS500SDC-3: 500 W from 0 °C to 50 °C; DS500SDC-3-001: 500 W from 0 °C to 40°C

Operating relative humidity: 10% to 80% non-condensing

Nominal Main Output: 12 V

Standby Output: 12 V @ 3A

Airflow Direction: Reverse
