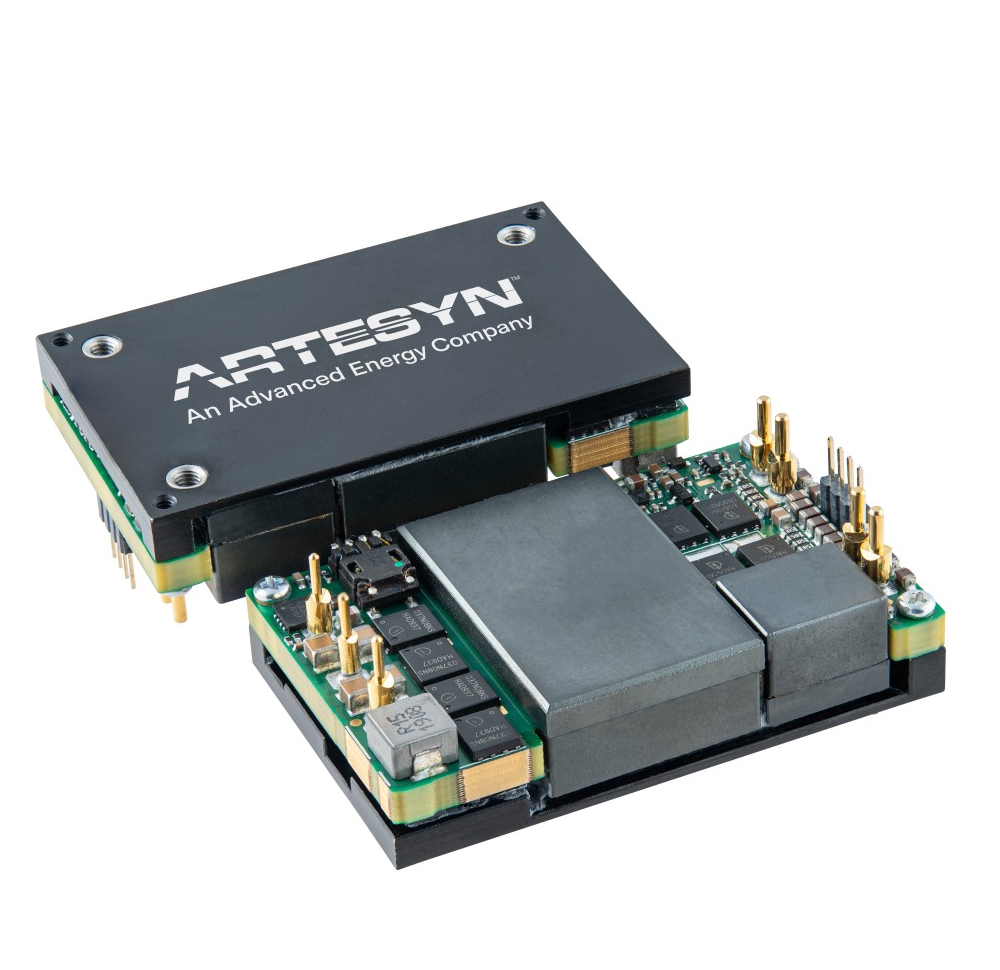

Artesyn BCQ1300-48S12B-4L Quarter-Brick Isolated DC-DC Converter (14.5V; 90A; 1300W)

Input range: 40-60 Vdc

Efficiency (50% load): 97.7%

Factory set voltage: 13.13 V

Output voltage total regulation: 9.6~14.5 Vdc

Load regulation: 400 mV max

Noise/ripple: 140 mV

Output current: 90 A

I/O isolation (input to output): 1500 Vdc

Operating ambient temperature range: -40 °C to +85 °C

Storage temperature: -55 °C to +125 °C

Humidity: 5% to 95% (non-condensing)

Output Voltage: 9.6 Vdc~14.5 Vdc

Delivers up to 1300 W

Datasheet
