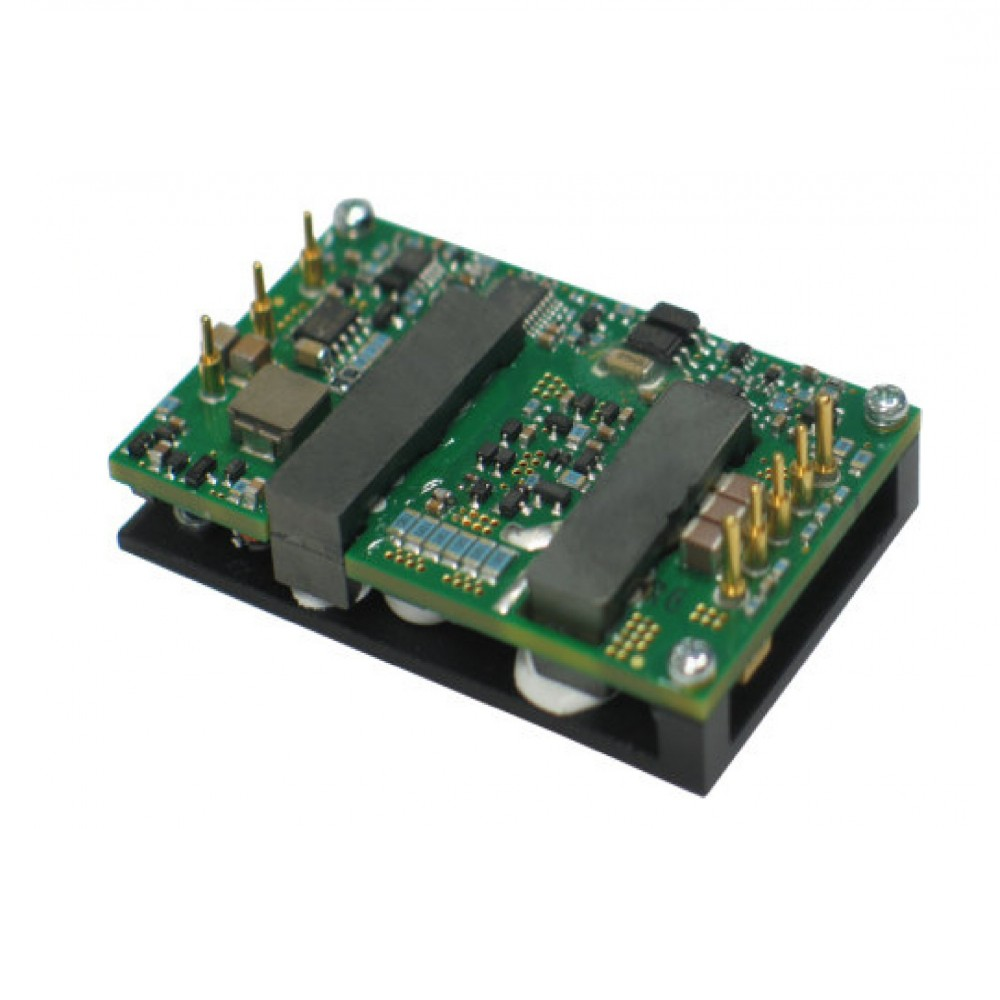

Artesyn AVQ100-36S3V3B-6L Quarter-Brick Isolated DC-DC Converter (3V3; 25A; 100W)

Input range: 18 - 60 VDC

Input currrent maximum: 6 Amps

Efficiency (48 Vin, 25 °C ambient): 90% at 3V3 peak efficiency

I/O isolation: 1500 Vdc

Output voltage: 3V3 nominal set point

Output voltage regulation: 3V3 ± 1%

Output current maximum: 25 A @ 3V3 output voltage

Noise & ripple: 40 mV pk-pk max (@ 3V3)

Storage temperature: -40 °C to +105 °C

Ambient temperature: -40 °C to +85 °C

Baseplate operating temperature: -40 °C to +100 °C (no power derating)

100 W continuous power
