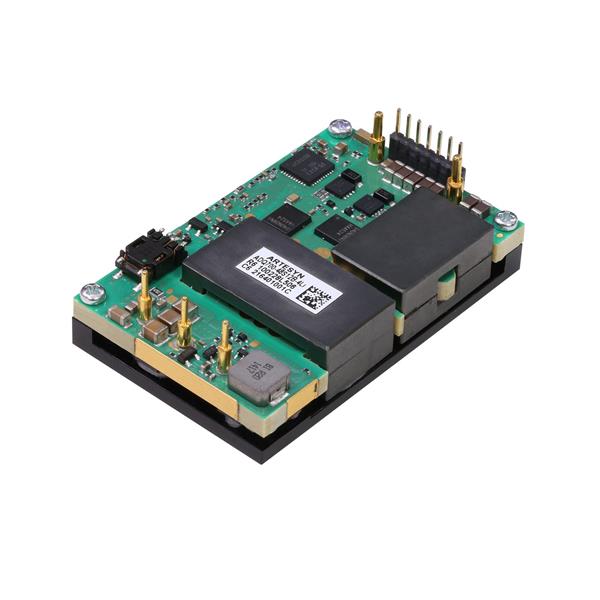

Artesyn ADQ700-48S12B-4LIHS Isolated 700W 40-60Vin 12Vout 58A NLog 4.6mmPin

Width: 36.8 mm (1.449 in)

Height: 13.21 mm (0.52 in)

Length: 58.2 mm (2.291 in)

Efficiency: 96 %

Output Power: 700 W

Input Voltage: 40 V to 60 V

Cooling Method: Air-Cooled

Mounting Style: Through Hole

Mechanical Style: Isolated

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 60 V

Input Voltage - Min: 40 V

Output Current-Channel 1: 58 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
