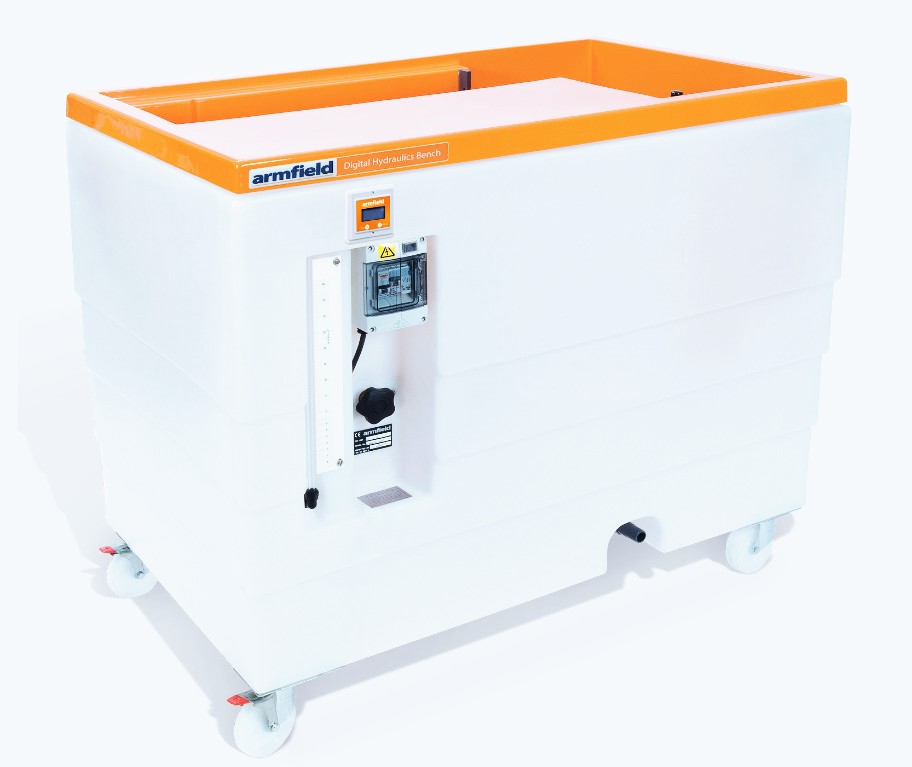

Armfield F-10 Hydraulics bench (250 L)

Pump: Submersible

Max head: 8.3m H2O

(using volumetric tank): Max flow: 80 litres/min

(using appropriate accessory): Max flow: 100 litres/min

Motor rating: 0.25kW

Sump tank capacity: 250 litres

High flow volumetric tank: 40 litres

Low flow volumetric tank: 6 litres

Height of working surface: 1m above floor level

Overall dimensions:

Length 1.13m

Width 0.73m

Height 1.0m

Packed and crated shipping specifications:

Volume: 1.5m3

Gross weight: 160kg

The bench additionally includes a quick-release pipe connector situated in the benchtop enabling rapid exchange of accessories without the need for hand tools, a measuring cylinder for measurement of very small flow rates, stopwatch and a copy of Armfield’s F1-aBASIC educational software.

The F1-10 hydraulics bench can be supplied with either a factory fitted electronic flow meter with digital display or an optional inline digital flow meter that can be added in line to the experiment on test at any time.
