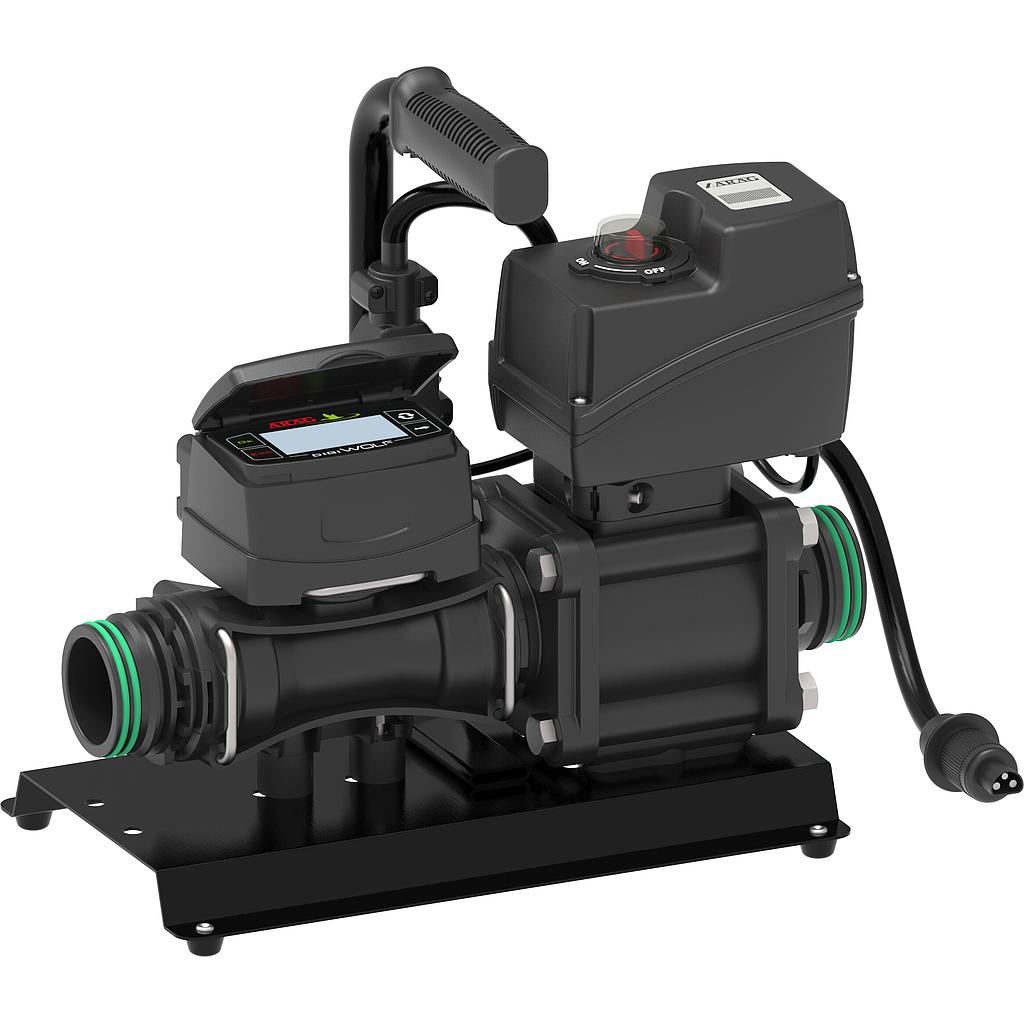

Arag Filling systems Transportable tank with fork coupling (20 ÷ 400 l/min, T6)

Specification

Code: 462F451A6

MAX Pressure: 12 bar

Flow rate: 20 ÷ 400 l/min

Fork Coupling (T): T6

Power supply voltage: 12 VDC

TECHNICAL FEATURES

Automatic valve stop once set quantity has been reached

DIGIWOLF flow-meter from 20 to 800 l/min / 5 - 210 GPM

Programmable multilingual graphic display

Display snap-on cover

Electric valve with stainless steel TEFLON® coated sphere

Fork coupling T6

Support with transport handle

7.5 m / 24.6 ft power cable

Power supply: 12 VDC

Features

Instant rate display (l/min/GPM)

Display of total quantity of liquid supplied

Unit of measurement: liters, US Gallons, m3

2 separately resettable counters

Programmable flow threshold alarm (min/max)

Assisted constant setting procedure

Typical error: 1% of the full scale

Operating pressure: up to 12 bars / 174 PSI

Parts in contact with the fluid in Nylon and fiberglass reinforced polypropylene, Delrin®, Stainless Steel and TEFLON®.
