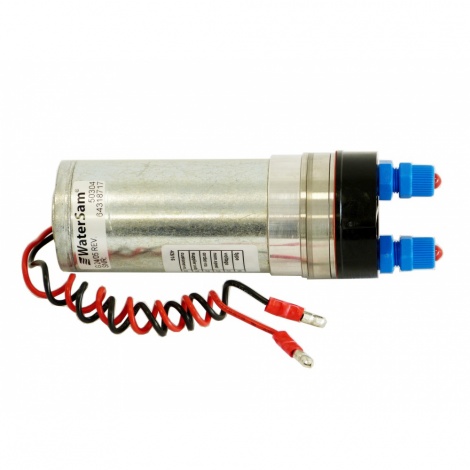

Aqualabo COMPRAXF Vaccum pump 24 Vdc

TECHNICAL CHARACTERISTICS

Dosing system

Dosing system: Vaccum pump (or peristaltic on request)

Sampling tube

Diameter : 12 mm

Longueur : 5 mètres en standard

Length : 5 meters (plus on request)

Material : PVC reinforced with clear ballast brass or stainless steel at the end of tube

Volume precision: 1 ± 1 ml

Detection system: Conductive fast response

Succion height: 6 meters

Speed volume: 0,5 m/s (to 5m height)

Sample volume: 20 – 200 ml

Claning of the sample: Yes

Clearing blow (before sampling): 1 to 120 seconds

Clearing blow (after sampling): 1 to 120 seconds

Blow pressure: 0,6 bars

Metering vessel: DURAN glass. No tools needed for mounting

Sample storage

Bidons: See datasheets

Controller

Remote start on external contact: YES

Sampling from external contact (eg flowmeter): 1 to 999 contacts

Starting late: 1 min to infinite

Sample Time: 1 min to 250 h

Intervals: 1 min to 100 h

Number of programs: 9 (simultaneous or chained)

Analog output: 0 or 4 to 20 mA

Interface: RS232 or RS485, RTC Modem (wired) or GSM Modem

Remote control: option

Batteries: Lead acid batteries

Autonomy: 600 samples

Norms: CE

Cabinet: Portable with handle

Material: Stainless steel AISI304 (1.4301)

Charger: Internal

Protection: IP 55

Operating temperature: 0 to 55 °C

Humidity: 80 % at 30 °C / 50% at 40 °C

Weight (with batteries): 13,5 kg

Dimensions H * W * D (mm): 430 * 415 * 290

For specific range please check the attachment below!
