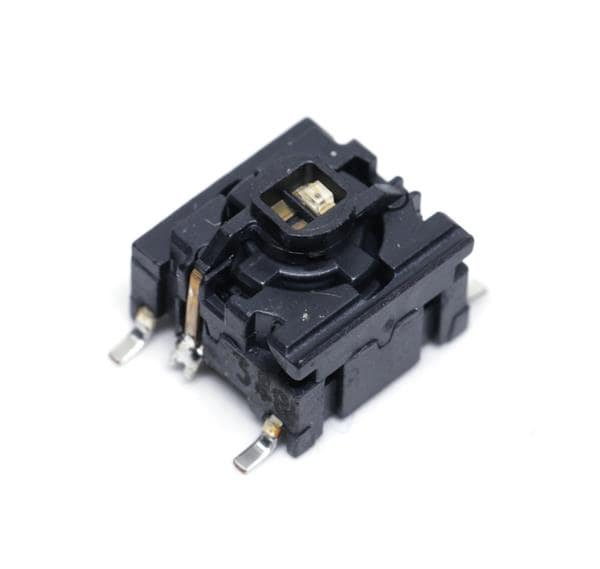

APEM 5GSH9202242 Tactile Switches Switch SMD 2N. Blue Led. TR

Life: 10000000 Cycle

Width: 10 mm

Height: 8.5 mm

Length: 10 mm

Travel: 1 mm

Actuator: Round

IP Rating: IP67

Lamp Type: LED

Illuminated: Illuminated

Unit Weight: 800 mg

Contact Form: SPST

Power Rating: 75 mW, 60 mW

Current Rating: 50 mA

Mounting Style: SMD/SMT

Contact Plating: Silver

Ground Terminal: No

Operating Force: 2 N

Switch Function: OFF - (ON)

Actuator Material: Polyphenylene Sulfide (PPS)

Termination Style: Gull Wing Lead

Voltage Rating DC: 24 VDC

Illumination Color: Green, Yellow

Mounting Direction: Straight

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
