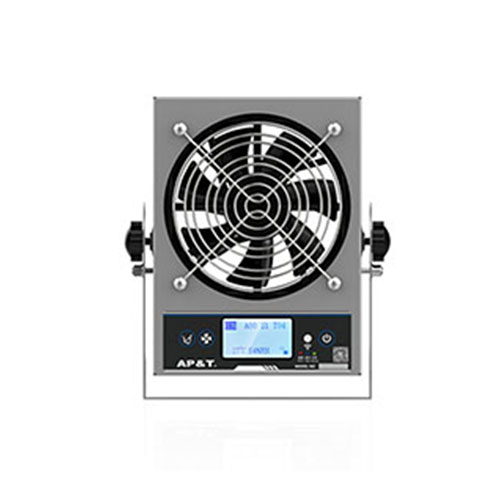

AP&T AP-DJ1811 Intelligent Control High Efficiency Static Eliminator (Ion, DC)

Input voltage: DC 24V（RJ45 Interface）

Output voltage: DC±4KV → ±6KV

Power: 12W

Ion emission: Pulse DC

Emitter electrode: Tungsten alloy

Discharge range: 750*300mm（L*W）

Air volume: ≤ 135CFM*1

Noise: Single air outlet≤ 58dBA（1000mm away from the air outlet）

Ozone thickness: ≤ 0.05ppm（150mm away from the air outlet）

Ion balance: ≤ |±10V|

Discharge speed: ≤ 1.5S （300mm away from the air outlet）

Status indicator:

+ Power on/clean operation—blue light flashes;

+ Normal work—green light (always under monitoring status);

+ Fan fault alarm—red light always on;

+ High voltage fault alarm-red light flashes；

+ Infrared debugging/cleaning prompt-blue light flashing

Communication method: RS485

Signal output: RS485（115200bps,8,1,n,n）≥ 20ms; Collector open circuit：＜ 50V,100mA

Working temperature: 0℃ -50℃

Working humidity: ＜ 70%RH

Dimensions: 147*70.5*190mmmm（L*W*H）Ionizing Air Blower body size）

Shell material: Aluminum powder spraying

Installation accessories: 1 pair of U-shaped iron powder spraying mounting brackets, 1 pair of bakelite screw handles（M5×8）

Power adapter: INPUT：AC100—240V 50/60Hz；OUTPUT：DC24V 2A（dual RJ45 Interface）

Weight: 1.35KG（Including power cord and bracket）

Certification: CE
