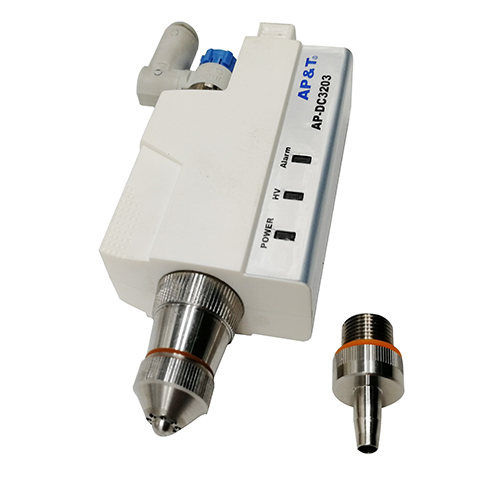

AP&T AP-DC3203 Ionizing Air Nozzle (DC24V)

Output voltage: DC24V

Working voltage: High frequency AC2200V

Current consumption: 500mA

Power consumption: 12W

Working distance: 150-300mm

Dissipation speed: ＜1.0s（150mm from the front of the wind nozzle）

Ion balance: -15V～+15V（150mm from the front of the wind nozzle）

Operating temperature: 0-40℃

Working humidity: 30—70%RH（No water condensation）

Air pressure: 0.05-0.5MPa

Ion emission: High frequency AC

Odor content: ＜0.03ppm

Adapter power supply: IN：AC100V—240V 50Hz/60Hz； OUT：DC24V 0.5A

Air source connector: Ф6mm

Dimensions（L*W*H）:

- Nozzle：104.5*56.5*22mm

Different types of nozzles, the size will be slightly different

- Power Adapter：74.2*29.5*62.2mm

- Power adapter power cord length：1.2m

Net weight:

- Nozzle：100g

- Power Adapter：71g

- Power adapter power cord length：41.5g

Gross weight: 362.5 g

Datasheet
