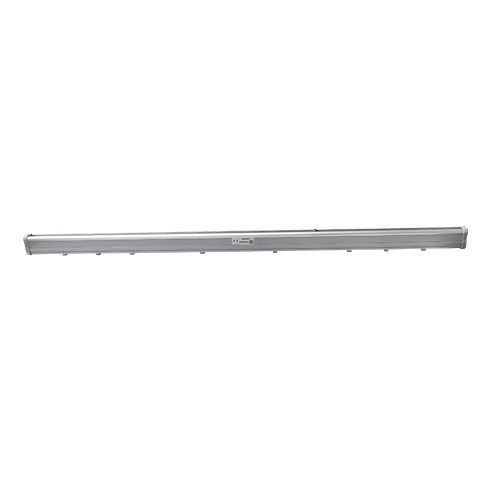

AP&T AP-DB1213 Space ion bar (±14KV)

Input voltage: DC 24V

Input current: ＜160mA

Power: 4W

Working voltage: ±14KV

Working way: Pulse DC

Pins: Tungsten

Output Frequency: 0.01,0.05,0.1,0.3,1,3Hz; (Factory setting：0.05Hz)

Duty Ratio: 10%—90%

Ozone density: ＜0.1ppm（distance to pins 50mm）

Condition monitoring: Series connected network monitoring

Working Temperature: 0℃-50℃

Working Humidity: ＜70%

Dimension: L*W*H {810…→2810（pin to pin200mm）}*35*78.4mm

Bar body material: Flame retardant PVC、ABS、AL

Power adapter: GRT-240200： DC24V 2A，123*61*40.5mm（L*W*H）

Cable length: 2.5m

Certificate: CE
