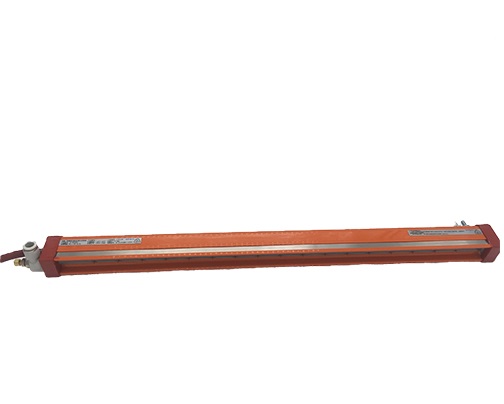

AP&T AP-AB1602A Explosion-proof AC Voltage Static Eliminator (AC4000V)

Explosion- proof sign: Ex s IIB T4 Gb

Explosion- proof certificate No.: GYB16.1549X

Operating Voltage: Power frequency AC4000V

Power: 20W

Electrode high voltage: ≤4000V

Electrode pin combined capacitor: <3.5pF

Installation distance: 100－600mm

Ion balance: ≤|±100V|

Discharging speed: ≤2.5S (Different test conditions will result in different test data)

Operating temperature: 0°C – 50°C

Working humidity: ＜70%

Bar body length: 110mm→3000mm

High-voltage connection line length: 2.5m (Can be customized according to requirements, the maximum length is 8m)

Power supply: AP-AY1603/2603
