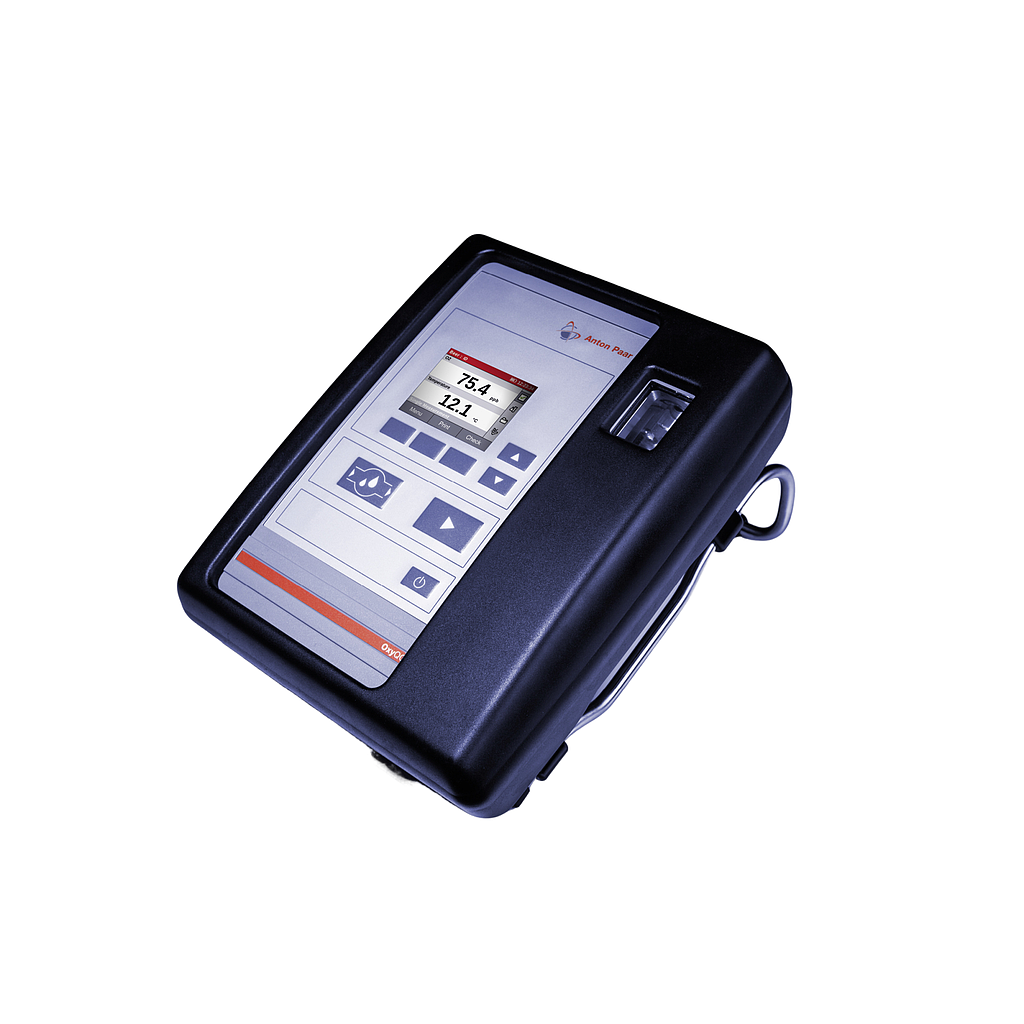

Anton Paar OxyQC Standard Portable Dissolved Oxygen Meter (0 ppm - 4 ppm; 3°C - 40°C; 0 bar - 10 bar)

Measuring range

O2: 0 ppm to 4 ppm

Temperature: –3 °C to 40 °C (27 °F to 104 °F), acc. ±0.2 °C

Pressure: 0 bar to 10 bar absolute (0 psi to 145 psi), acc. 0.01 bar

Repeatability s.d. (O2): ±2 ppb (in range <200 ppb)

Resolution (O2): 0.1 ppb (in range <100 ppb)

Sample volume: >100 mL

Measuring units: ppm, ppb, hPa, mg/L, μg/L, % Air-sat., % O2-sat.

Measuring time: 50 seconds

Data memory: 500 measurement data sets

Built-in support: O2 Data Logger, threshold value functionality, system check

Portable use: Up to 11 hours continuous use

Communication interfaces: 1x RS-232, 1x USB; optional: 1x RFID, 1x Bluetooth

Accessories: PFD (Plus), SFD, carrying strap, RFID tags, printer, rubber protection

Protection class: IP67

Dimensions (L x W x H): 262 mm x 209 mm x 176 mm (10.3 in x 8.2 in x 6.9 in)

Weight: 1.7 kg (3.75 lbs)
