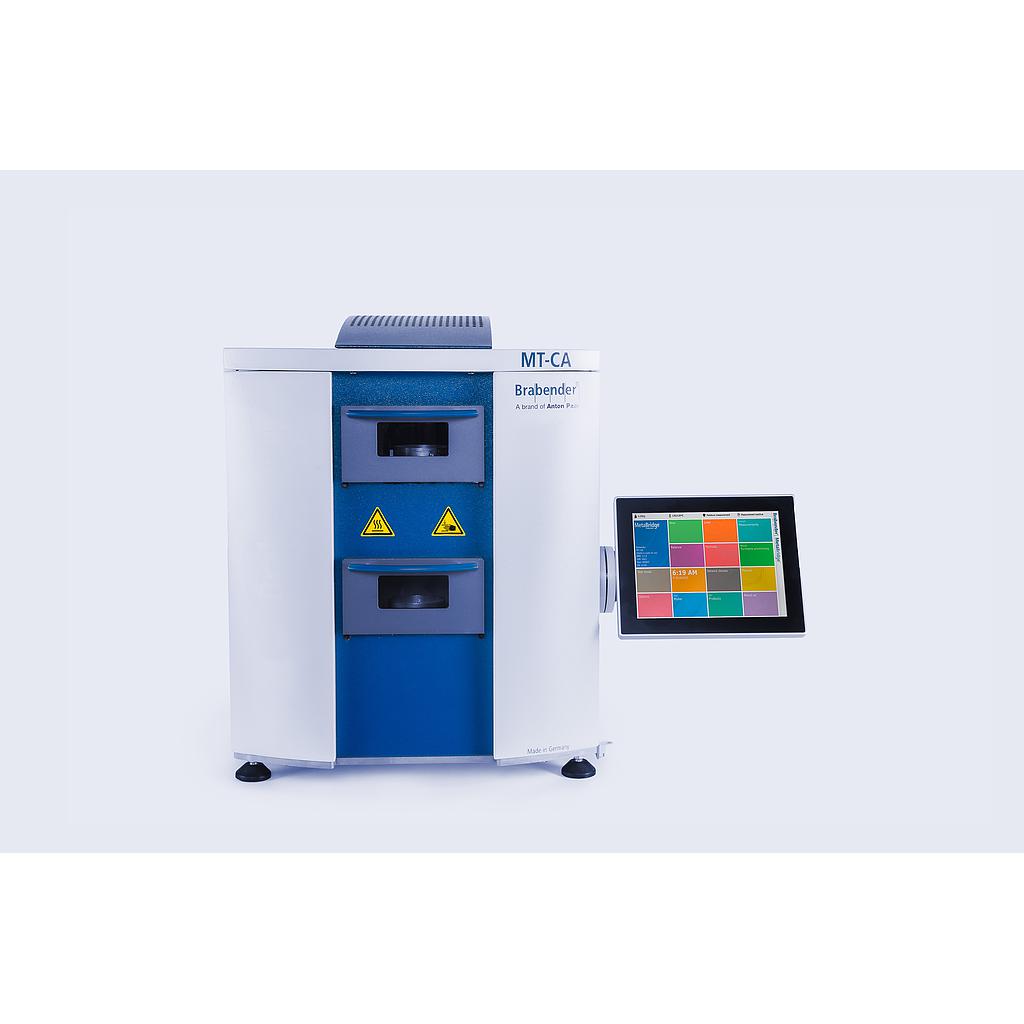

Anton Paar MT-CA Universal Moisture Analyzer (0.1 % - 99.9 %)

Mains connection:

1x 220/230 V; 50/60 Hz, + N +PE; 7.5 A

115 V; 50/60 Hz + PE; 14 A

Dimensions (W x H x D): 820 mm x 680 mm x 630 mm (with touchscreen)

Power supply:

1 x 230 V; 50 Hz/60 Hz + N + PE; 5.2 A

1 x 115 V; 50 Hz/60 Hz + PE; 10.4 A

Weight: Approx. 80 kg

Drying temperature: Max. 200°C in the drying chamber

Heating capacity: 1100 W

Sample weight: Min. 1 g, max. 20 g (optional setting of a tolerance range)

Number of samples: Max. 10 at a time

Measuring range: 0.1 % to 99.9 % water content

Accuracy: <0.1 % water content

Display resolution: 0.001 g

Reproducibility (balance): ± 0.002 g

Temperature: 10 °C to 40 °C: Environmental conditions
