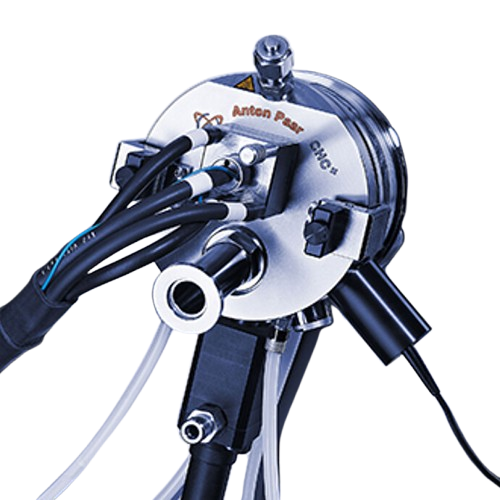

Anton Paar CHC plus⁺ Cryo & Humidity Chamber (5 ~ 95 % RH; 5 ~ 70 % RH)

Operating temperature with compressed air cooling: Vacuum (10^-2 mbar): -5 °C to 400 °C; air ; inert gas: -5 °C bis 300 °C; humid gas: 10 °C bis 80 °C

Operating temperature with liquid nitrogen cooling: Vacuum: -180 °C to 400 °C

Air, dry nitrogen: -120 °C to 300 °C

Relative humidity range: 5 to 95 % RH at 10 °C to 60 °C, 5 to 70% RH at 80 °C

Temperature measurement: Pt 100

Atmospheres: (Humid) air/nitrogen, inert gas, vacuum (10^-2 mbar)

Scan range: 0 bis 164° 2θ

Max. operating pressure: 0.2 bar above atmospheric pressure

Sample holder surface: Copper, chromed

Sample cavity area: 10 x 14 mm

X-ray geometry: Reflection
