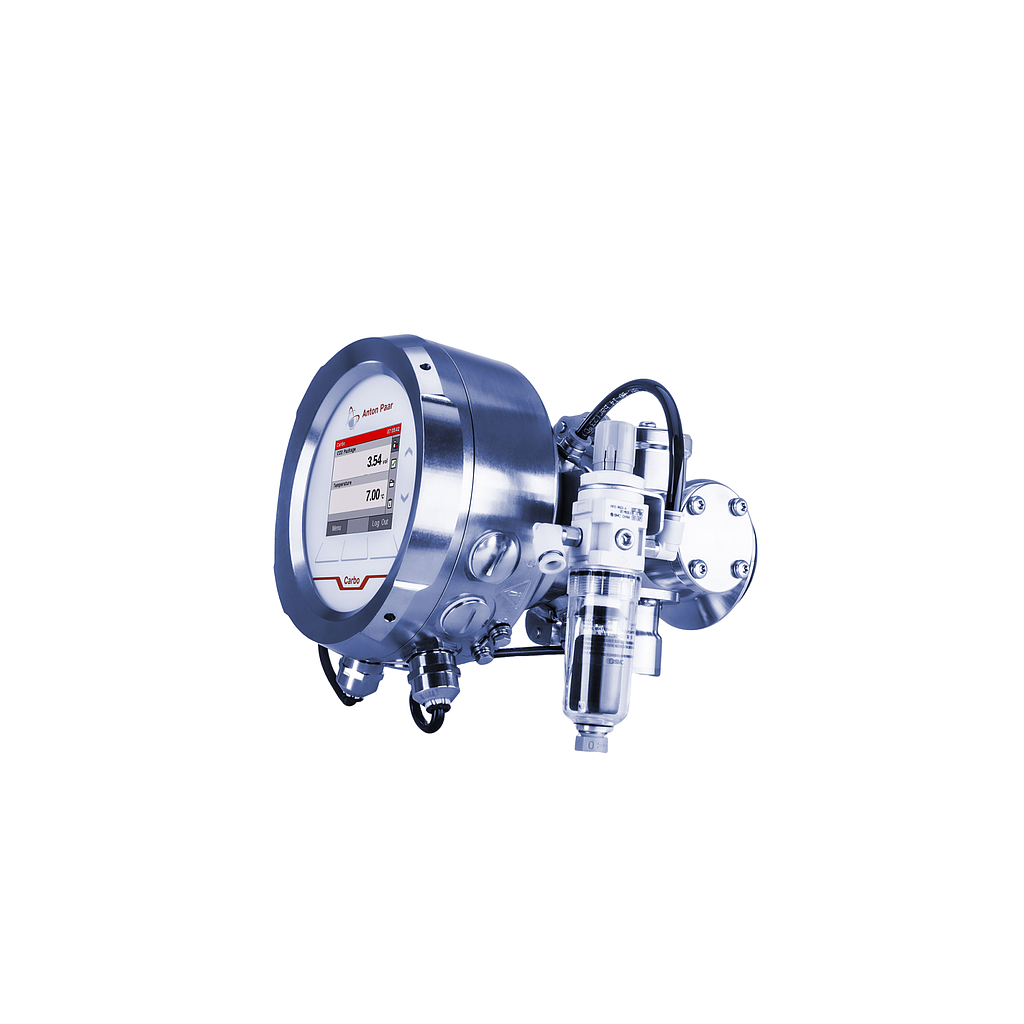

Anton Paar Carbo 6300 Inline CO₂ Sensor (0 - 12 g/L (0 - 6 vol); - 3 °C~+ 30 °C)

Application: CO₂ measurement Suitable for all beverages

Measuring range: 0 to 12 g/L (0 to 6 vol)

Accuracy*: 0.05 g/L (0.025 vol)

Repeatability: 0.01 g/L (0.005 vol)

Resolution: < 0.01 g/L (0.005 vol)

Measuring interval: 4 seconds

Measuring temp. range: - 3 °C to + 30 °C

Maximum temperature: +130 °C (max. 30 min)

Pressure: max. 10 bar rel. (145 psi rel.)

Self-diagnosis: Compliant with NAMUR NE 107 (self-monitoring and diagnosis)

Degree of protection: IP 65 and IP 67

Process connection: Tuchenhagen Varivent® N

Certifications: EHEDG Type EL Class I

Power Supply: SELV/PELV DC 24 V ± 20 %

Dimensions (WxHxD): 142 mm x 142 mm x 220 mm

Weight: approx. 4 kg
