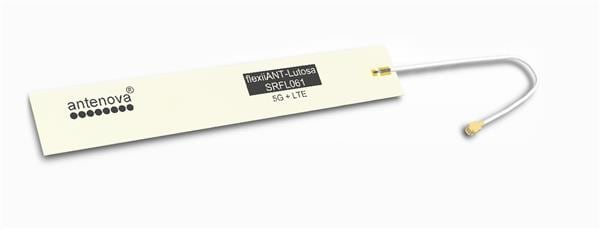

Antenova SRFL061-150 Passive Antenna Lutosa 150mm cable

Gain: - 4.2 dBi, - 3.2 dBi, - 2.3 dBi, - 2.2 dBi, - 2.1 dBi, - 1.8 dBi, - 1.9 dBi, - 2.2 dBi

VSWR: 2.9:1, 3.1:1, 1.6:1, 1.7:1, 2.1:1, 1.5:1, 2.0:1, 2.4:1

Style: I-Bar Flex

Width: 15 mm

Height: 0.15 mm

Length: 95 mm

Impedance: 50 Ohms

Cable Type: 150 mm RF1.13

Application: Network Devices, Pico Base Stations, Remote Monitoring, POS Terminals, M2M, CCTV over Celluar, Drone

Mounting Style: Adhesive Mount

Number of Bands: 8 Band

Center Frequency: 657.5 MHz, 761 MHz, 892 MHz, 1470 MHz, 1955 MHz, 2350 MHz, 2595 MHz, 3550 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 3.8 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 5G, GSM, DCS, PCS, WCDMA
