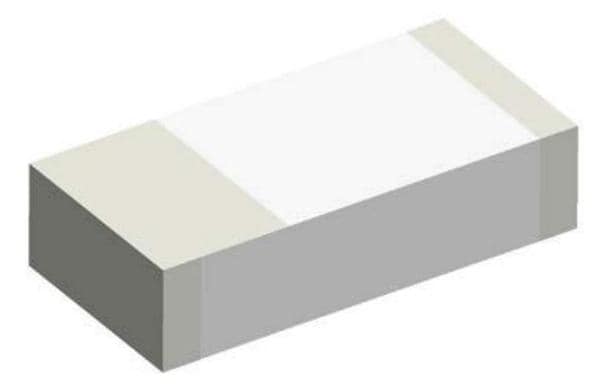

Antenova A10381 Passive Antenna 2.4GHz -40C +85C Pk Gain 1.5dBi

Gain: 1.5 dBi

VSWR: 1.6 :1

Style: Ceramic

Width: 1.6 mm

Height: 0.65 mm

Length: 3.3 mm

Impedance: 50 Ohms

Technology: 2.4 GHz

Application: Mobile phones, PDAs, PNDs, Headsets, PMPs/MP3s, Electronic Shelf Labels, PC-Cards, Medical devices, Sensors, Laptops

Unit Weight: 16 mg

For Use With: Bluetooth, WiFi, ZigBee

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Chip

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - WiFi - 802.11: 802.11 a/b/g/n, WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BT EDR, BT LE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
