Anritsu MS46121A ShockLine™ Compact USB VNA Vector Network Analyzers (2 port, 1 MHz — 8 GHz; 1 MHz — 20 GHz; 1 MHz — 40 GHz)

World s first series of compact VNAs to 40 GHz for cost-effective measurements.

PC control takes advantage of external computer processing power and functionality.

Compact 1U high package for efficient use of bench and rack space.

No onboard data storage eliminates the need for data purging in secure applications.

Time domain with time gating option grants easier and faster fault identification.

A common GUI interface within the ShockLine family reduces switching costs between models.

The MS46122A is a series of three PC-controlled Compact ShockLine Vector Network Analyzers with a frequency range from 1 MHz to 8/20/40 GHz. The series benefits from patented shockline VNA-on-chip technology, which simplifies the internal VNA architecture at high frequencies, reduces instrument cost, and enhances accuracy and measurement repeatability.

All the members of the MS46122A series are low cost full-reversing 2-port VNAs aimed at RF and microwave applications in manufacturing, engineering and education. All three MS46122A VNAs have 220 microseconds per point sweep speed and better than 100 dB dynamic range making them suitable for a variety of device test applications.

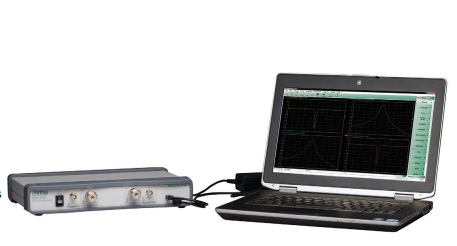

These new VNAs are in packaged in a very compact 1U chassis and are externally controlled via USB from a user supplied PC running the same Graphical User Interface (GUI) software as the rest of the ShockLine family of VNAs. The series does not have any on board memory which simplifies its use in secure applications. The combination of lower cost, small size and good performance make the MS46122A series VNAs ideal for passive device test applications where performance and small form factor are desired.

RF and Microwave Passive Component Testing and Troubleshooting

RF and microwave connectors and cables

Electromechanical switches

Attenuators

Couplers

Filters

Isolators

Circulators

Phase Shifters

System Integration Applications

System Calibration

Path-loss Characterization

General s-parameters and time domain measurements

Secure Area Applications

No data storage on unit

Secure external computer control through direct USB connection
