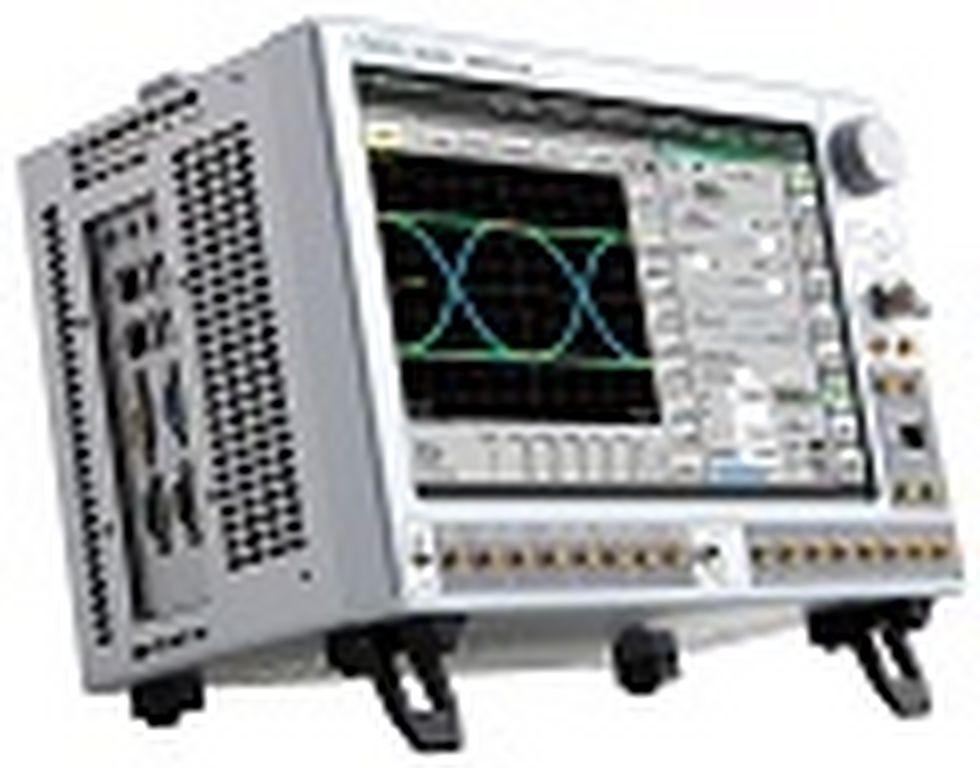

BERTWave™ MP2100B
MX210001A Jitter Analysis Software/MX210002A Transmission Analysis Software
Features
Description
The BERTWave MP2100B is an all-in-one test set with built-in BERT and sampling oscilloscope supporting evaluation of optical modules, including BER measurements, Eye Mask tests, Eye pattern analyses, etc.
A BERT and sampling oscilloscope are required measuring instruments for evaluating optical modules used by optical communications systems. Previous evaluations of optical modules, such as QSFP+ and SFP+ modules, required provision of a separate BERT and sampling oscilloscope. However, the BERTWave MP2100B incorporates a BERT supporting up to 4 channels as well as a sampling oscilloscope in a single, compact, 18 cm deep cabinet, slashing equipment investment costs and saving bench-top space. In addition, the BERTWave MP2100B reduces measurement times by eliminating the need to change cable connections at simultaneous BER measurements, Eye Mask tests, and Eye pattern analyses. Additionally, adding the SFP+ plug-in port supports optical BER measurements.
The BERTWave MP2100B BERT function supports BER measurements at speeds ranging from 125 Mbit/s to 12.5 Gbit/s; its built-in 4ch BERT option makes it easy to configure test systems for multichannel modules, such as QSFP+ and AOC. Further, in addition to supporting BER measurements for differential signals, it also supports Eye Mask and Eye pattern Measurements.
The BERTWave MP2100B sampling oscilloscope has a bandwidth of 25 GHz (typ.) for electrical interfaces and a bandwidth of 9 GHz (typ.) for optical interfaces. In addition, up to six optional Bessel filters can be built-in for measuring optical signals using the scope. Using these filters, MP2100B supports extinction ratio measurements, Eye Mask tests and Eye pattern analyses for various applications. Further, the scope has a Fast Sampling Mode to secure the fastest high-speed measurements; sampling speeds of up to 150 ksample/s are supported by Fast Sampling Mode, which is 1.5 times faster than legacy models and supports time-saving high-speed Eye Mask tests and Eye pattern analyses.
Using the Jitter Analysis MX210001A software facilitates easy all-in-one simultaneous Jitter analysis, Eye pattern and Eye Mask measurements and the 150 ksample/s sampling speed makes even more efficient use of measurement time. Combined use with MATLAB® supports waveform dispersion measurements for specific signals, such as WDP, TWDP, and dWDP waveforms.
Last, the Transmission Analysis MX210002A software adds functions for analyzing device transmission (S21 gain and phase), plus a De-Embedded waveform simulation function executed by linear equalizer, filter, and Emphasis calculations. Simultaneous waveform sampling and simulation as well as simultaneous Eye pattern and Eye Mask measurements are supported. Combined use with the MX210001A software also enables simultaneous Jitter measurements of simulated waveforms.
MATLAB® is a registered trademark of The MathWorks Inc.
BERT
|
Operation Bit Rate |
With MP2100B-092 |
Without MP2100B-092 |
|||||||||||||
|
PPG, ED Common:
|
PPG, ED Common:
1/N bit-rate operation range
|
||||||||||||||
|
Test Pattern |
PRBS: 27-1, 29-1, 215-1, 223-1, 231-1 (Invert ON/OFF) |
||||||||||||||
|
Electrical Data Output |
Data, Xdata |
||||||||||||||
|
Amplitude |
0.1 Vp-p to 0.8 Vp-p |
||||||||||||||
|
Electrical Data Input |
Data, Xdata |
||||||||||||||
|
O/E Input |
Optical data |
||||||||||||||
|
Wavelength Range |
750 nm to 1650 nm |
||||||||||||||
Sampling Oscilloscope
|
Bandwidth (-3 dB) |
Electrical: DC to 20 GHz minimum, DC to 25 GHz typ. |
|
Display |
Eye pattern, Pulse pattern, Coherent Eye |
|
Measurement Function |
Statistical (NRZ), Histogram, Mask compliance |
|
Sampling Speed |
Normal: 100 ksample/s (typ.) |
|
O/E Input (Option 023) |
Optical data |
|
Wavelength Range |
750 nm to 1650 nm |
|
Clock Recovery (Option 055) |
0.1 GHz to 2.7 GHz, 8.5 GHz to 12.5 GHz |
Jitter Analysis Software MX210001A
|
Operating Conditions |
Operates only when installed in MP2100B with correct license information |
|
|
Measurement Algorithm |
Histogram mode, Pattern search mode |
|
|
Histogram Mode |
Measurement Items |
TJ (1.0E-12), TJ (user defined), RJ (d-d), DJ (d-d), DDPWS, J2 Jitter analysis, J9 Jitter analysis, Eye opening |
|
Pattern Search Mode |
Measurement Items |
TJ (1.0E-12), TJ (user defined), RJ (d-d), RJ (rms), DJ (d-d), PJ (p-p), DDJ (p-p), DCD, |
|
WDP Measurement |
Requires installation of MATLAB® 2010b by MathWorks |
|
|
Measurement Items |
WDP, dWDP, TWDP, dTWDP, WDPc, dWDPc, TWDPc, dTWDPc |
|
Transmission Analysis Software MX210002A
|
Operating Conditions |
Operates only when installed in MP2100B with correct license information |
|
|
Measurement Mode |
Transmission analysis, Waveform estimation |
|
|
Transmission Analysis |
Measurement Items |
Gain graph, Phase graph, Group delay graph |
|
Waveform Estimation |
Equalizer Setting |
Selects reflector, non-reflector at calculation |
|
Emphasis Format |
2Post/1Pre, 3Post, 1Post/1Pre, 2Post, 1Post |
|
|
Device Character |
Reads S2P file |
|
|
Jitter Analysis |
Displays estimated waveform calculation results at MX210001A |
|
Applications
40 Gbit/s QSFP+ (4 x 10 Gbit/s) Measurement
Active Optical Cable (AOC) Measurement
PON Device BOB (BOSA On Board) Evaluation
Direct Attach Cable (DAC) Measurement
