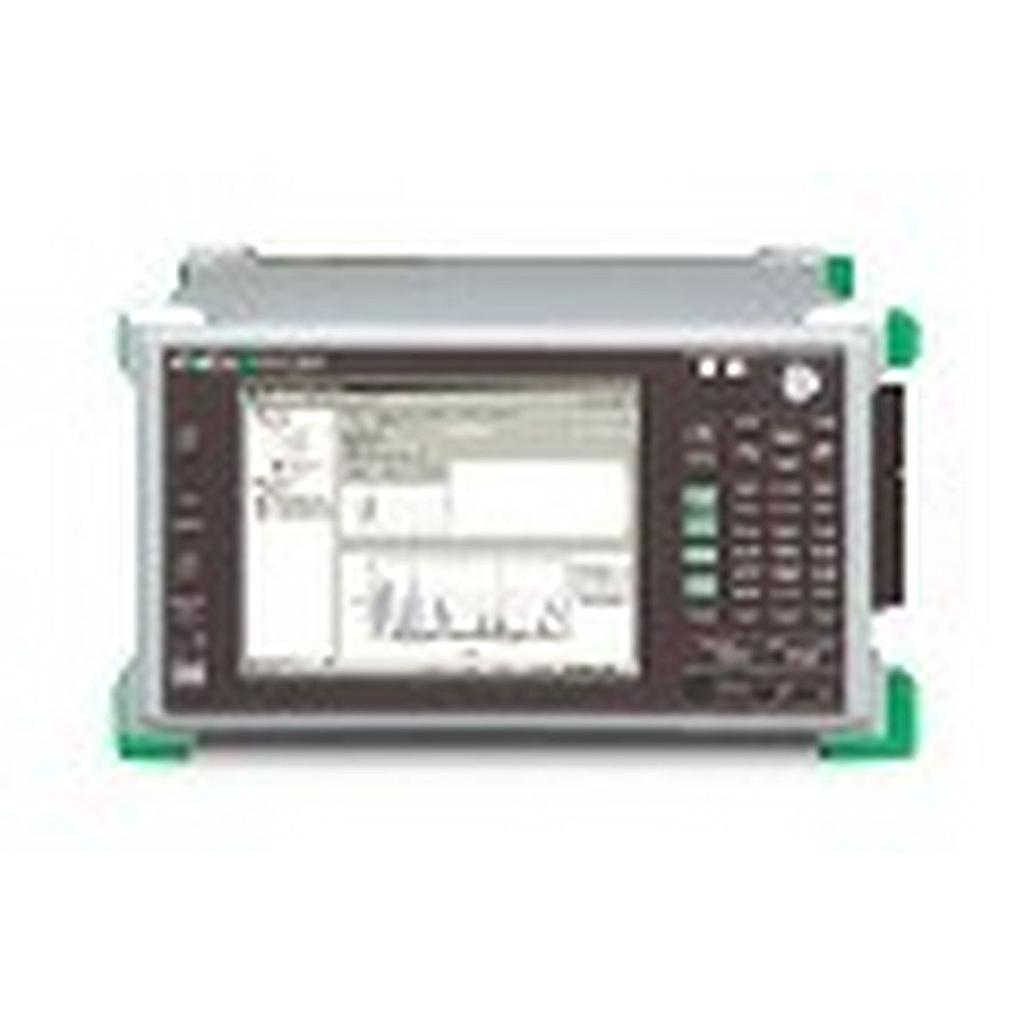

Data Quality Analyzer MD1230B
Expert Analysis Module MX123002A MD1230A
MD1230B with MU120131A/32A IP Multicast Measurement
MD1230B with MU120131A/32A PON Quick Start Guide
Features
The MD1230B network monitor has an in-service (through mode) capture function with uniquely large per-port buffers. This powerful capability is very useful for troubleshooting network faults. Captured frames can be searched based on specific conditions and desired frames can be selected and displayed. Multiple protocols can be decoded and displayed for captured frames at full wire speed up to 10 Gbps.
Description
he Data Quality Analyzer MD1230B is the industry first portable Ethernet/IP network data analyzer with the dual functionality of wire speed performance analysis and network monitoring integrated in the same instrument. The built-in LCD display with intuitive Windows XP-based GUI and modular architecture makes the MD1230B a versatile and an easy-to-use solution for all network testing environments -- ranging from R&D and manufacturing, to installation and maintenance.
The MD1230B mainframe has five slots in which any of the various interface modules described in "Features" above can be field-installed. Multiple MD1230B units can be synchronously daisy-chained to increase the port density. Windows-based GUI software is available to allow multiple simultaneous users to remotely control the MD1230B units from an external PC via a 10/100 Mb Ethernet IP connection, using exactly the same GUI that appears on the MD1230B screen.
The new MD1230B-17 Traffic Impairment Emulator option is a unique all-in-one solution that provides network impairment emulation and performance measurement for carriers and network equipment vendors offering real-time applications such as IPTVand VoIP. It enables the MD1230B to emulate network faults such as packet loss, error/packet overwrite, transmission delay, and packet jitter for both 10/100/1000 M Ethernet and Gigabit Ethernet.
The MD1230B offers numerous performance analysis features for Engineering, Conformance, Functional, Manufacturing, and Quality Assurance testing of routers, switches, and other network devices during R&D and manufacturing as well as interoperability testing and comparative analysis during lab evaluation. A very sophisticated, yet simple-to-use, stream editor enables the user to construct complex data flows that can be transmitted at full 10 Gbps wire speed. It supports two types of QoS settings for verification of QoS mechanisms. In addition, automatic benchmarking test suites for network performance analysis defined by IETF in RFC 2544 and RFC 2889 are fully integrated, enabling simple and efficient testing with the press of a single button.
Applications
