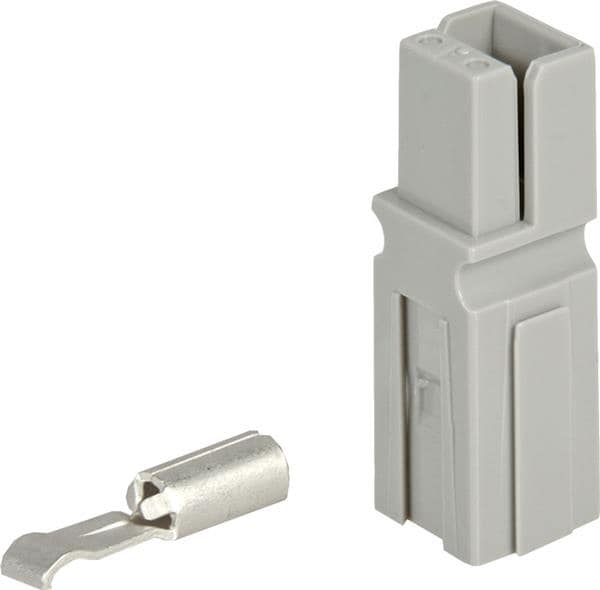

Anderson Power Products 1395G7 Connectors PP15 GRAY #16-20 AWG W/ 15A 16-20AWG CONT

Unit Weight: 2.500 g

For Use With: Powerpole PP15 Series Connectors

Housing Color: Gray

Current Rating: 15 A

Mounting Angle: Straight

Mounting Style: Cable

Voltage Rating: 600 V

Wire Gauge Max: 16 AWG

Wire Gauge Min: 20 AWG

Contact Material: Copper Alloy

Housing Material: Polycarbonate (PC)

Wire Gauge Range: 20 AWG to 16 AWG

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 1 Position

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 20 C
