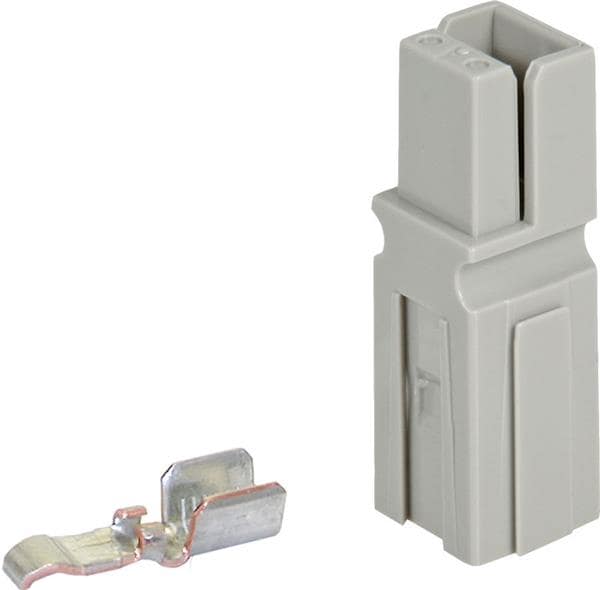

Anderson Power Products 1345G18 Connectors PP45 GRAY #10-14 AWG 45A 10/14 AWG CONT

Unit Weight: 2.076 g

For Use With: Powerpole PP45 Series Connectors

Housing Color: Gray

Current Rating: 45 A

Voltage Rating: 600 V

Wire Gauge Max: 10 AWG

Wire Gauge Min: 14 AWG

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Polycarbonate (PC)

Wire Gauge Range: 14 AWG to 10 AWG

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 1 Position

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 20 C
