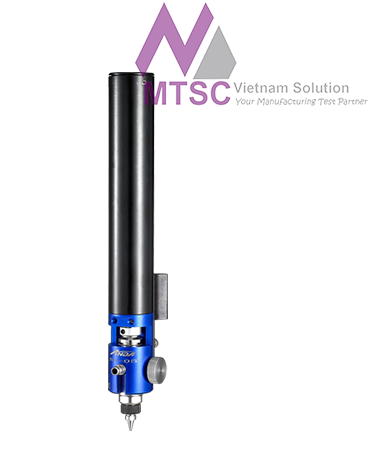

Anda SV-05 dispensing valve

It can achieve precise extrusion and uniform dispensing. The fast detachable wetted part is suitable for a fluid containing particles.

Structure: Fast detachable screw valve

Weight: 585g

Operating medium: *

Operating pressure: *

Fluid pressure: 0～0.4Mpa

Maximum operating frequency: Max. flow 100mg/s

Minimum dispensing Diameter: 0.5mm

Highest heating temperature: *

Viscosity range: 5W～200WCps

Driving: DC coreless motor

Fluid inlet: Luer taper

Applied fluid: Solder paste, die adhesive,SMT adhesive, two-component chip packaging adhesive,UV adhesive
