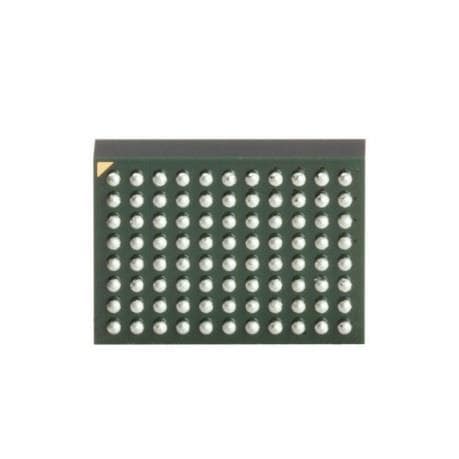

Analog Devices LTM8054IY Micro Module Regulator 36VIN, 5.4A Buck-Boost Module Regulator

Shutdown: Shutdown

Topology: Buck-Boost

Unit Weight: 5 g

Input Voltage: 5 V to 36 V

Mounting Style: SMD/SMT

Output Current: 5.4 A

Output Voltage: 1.2 V to 36 V

Development Kit: DC2016A

Load Regulation: 0.5 %

Number of Outputs: 1 Output

Quiescent Current: 8 mA

Moisture Sensitive: Yes

Input Voltage - Max: 36 V

Input Voltage - Min: 5 V

Switching Frequency: 800 kHz

Operating Supply Current: 8 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
