Features: CMOS or LVDS SPI Compatible Serial I/O, Four Simultaneously Sampling Channels
Shutdown: No Shutdown
Input Type: Differential/Single-Ended
Resolution: 14 bit
Architecture: SAR
Sampling Rate: 2 MS/s
Interface Type: Serial CMOS, Serial LVDS

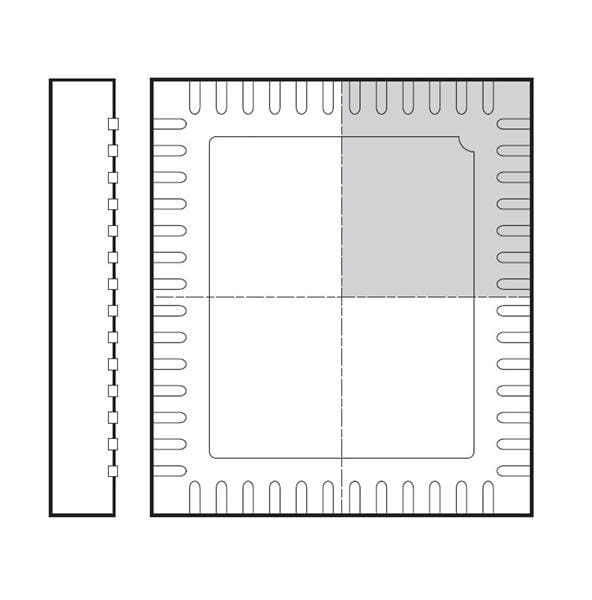

Mounting Style: SMD/SMT
Reference Type: External, Internal, Supply
Development Kit: DC2395A-E
Reference Voltage: 2.048 V/4.096 V
Number of Channels: 4 Channel
Number of Converters: 4 Converter
Analog Supply Voltage: 3.3 V, 5 V
Pd - Power Dissipation: 214 mW
FPBW - Full Power Bandwidth: 55 MHz
INL - Integral Nonlinearity: 1 LSB
SNR - Signal to Noise Ratio: 82.5 dB
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
DNL - Differential Nonlinearity: 0.4 LSB
THD - Total Harmonic Distortion: - 91 dB
SFDR - Spurious Free Dynamic Range: 93 dB
SINAD - Signal to Noise and Distortion Ratio: 81 dB
