Shutdown: No Shutdown
Gain Error: 0.5 % FSR
Input Type: Parallel
Resolution: 16 bit
Output Type: Current
Unit Weight: 1.500 g
Architecture: Current Steering
Sampling Rate: 2.5 GS/s
Settling Time: 2.2 ns
Interface Type: LVDS, SPI

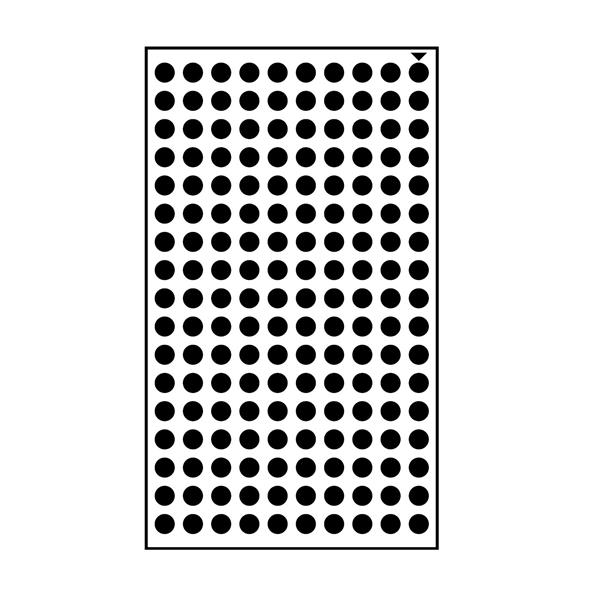

Mounting Style: SMD/SMT
Reference Type: External, Internal
Development Kit: DC2303A-A, DC2085A-A
Reference Voltage: 1.25 V
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Number of Converters: 1 Converter
Supply Voltage - Max: 1.89 V, 3.465 V
Supply Voltage - Min: 1.71 V, 3.135 V
Pd - Power Dissipation: 2.2 W
Operating Supply Current: 720 mA
INL - Integral Nonlinearity: 1 LSB
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
DNL - Differential Nonlinearity: 0.5 LSB
SFDR - Spurious Free Dynamic Range: 76 dBc
