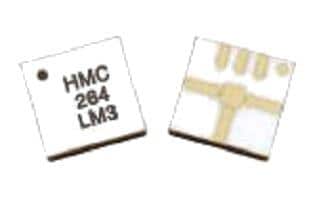

Technology: GaAs
RF Frequency: 20 GHz to 30 GHz
Mounting Style: SMD/SMT
NF - Noise Figure: 12 dB
Moisture Sensitive: Yes
Supply Voltage - Max: 4 V
Supply Voltage - Min: 3 V
Conversion Loss - Max: 12 dB
Pd - Power Dissipation: 227 mW
Operating Supply Current: 28 mA
Operating Supply Voltage: 4 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
